Röders 5-Axis RXU Series

1 3

The Röders 5‑Axis RXU series is engineered for high roughing capacity, extreme stiffness, and exceptional precision, thanks to its proprietary QUADROGUIDE® design that channels cutting forces directly into a robust machine bridge. These machines feature wear-free linear/torque motors in all axes, high-resolution encoders, integrated temperature control, and advanced 5-axis geometry compensation, enabling long, accurate machining operations even under heavy workloads. Available in various configurations, they cater to diverse applications, from mould and die making to aerospace and medical parts, offering generous work envelopes and high feed rates up to 60m/min.



The Röders 5‑Axis RXU series features 4 models: RXU1001DSH, RXU1001DBH, RXU1201DSH, and the RXU1201DSXH.



Highlights

  • QUADROGUIDE® portal construction delivers unmatched stiffness and dynamic force transmission with low inertias.
  • Direct-drive axes with high-resolution encoders ensure precise movements and long-lasting accuracy.
  • Advanced features like geometry compensation, temperature-controlled components, and options for dual-side visibility (windows) enhance both precision and usability.
  • Versatile range of models offer work capacities from ~800 kg to ~1,500 kg, varying table sizes, and customisation (tool changers, spindle options) to suit different sectors and applications.
View full details
Download Röders 5-Axis RXU Series BrochureRequest a Quote

Technical Specifications

Machining Range

RXU1001DSH & RXU1001DBH: 800mm x 855mm x 500mm (X,Y,Z)

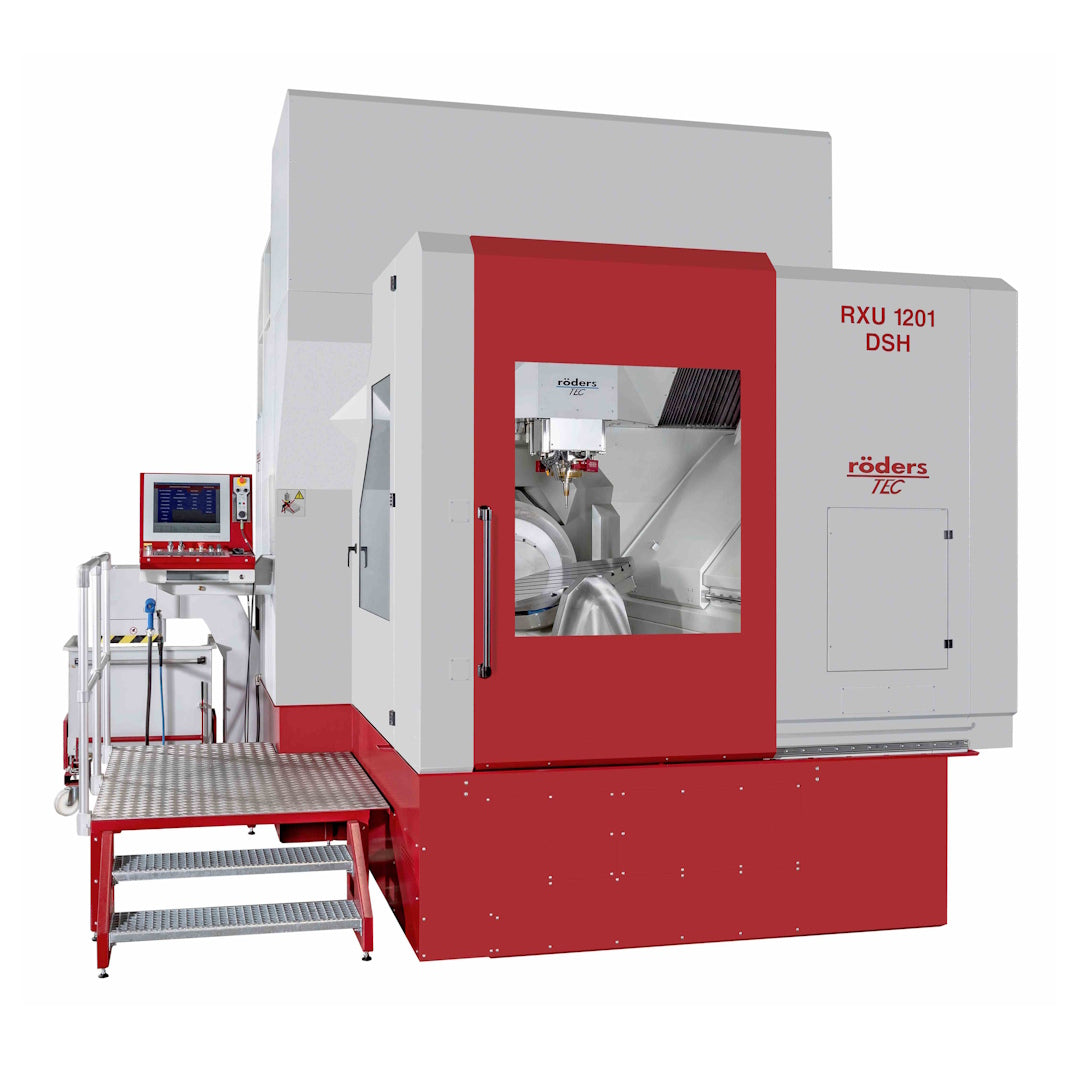

RXU1201DSH: 1000mm x 1050mm x 600mm (X,Y,Z)

RXU1201DSXH: 1000mm x 1050mm x 800mm (X,Y,Z)

Swivelling Range

RXU1001DBH: 45 / — 195 degrees (others on request)

All other models: +/-115 degrees (others on request)

Rotation Range

All models: Almost unlimited

Table Size

RXU1001DSH: 400mm round or 400mm square, 600mm round with two flattened sides or 600mm round

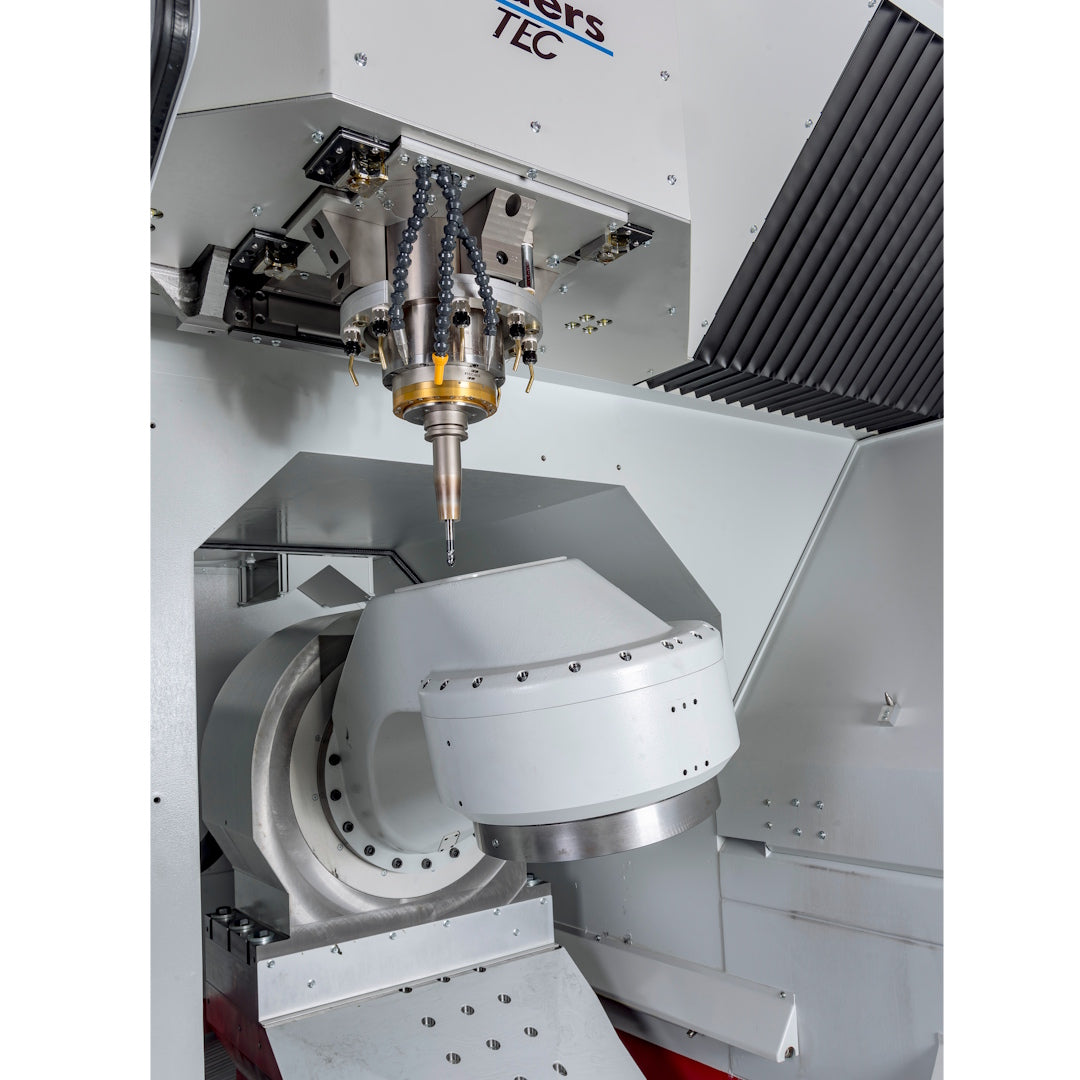

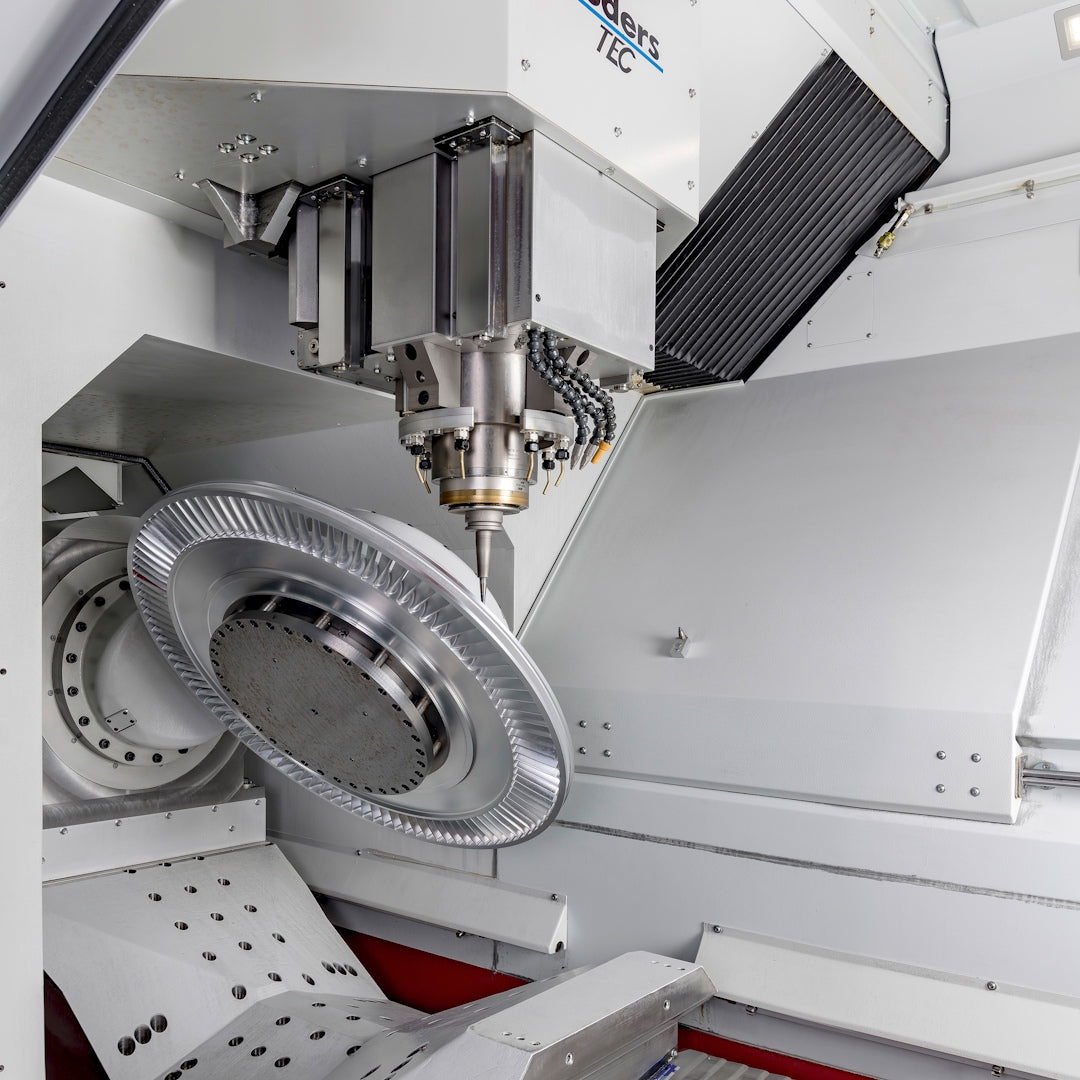

RXU1001DBH: 355mm round with integrated 4‑fold quick clamping system (others on request)

RXU1201DSH: 625mm round or 625mm square, 895mm round with two flattened sides or 895mm round

RXU1201DSXH: 625mm round or 625mm square, 895mm round with two flattened sides or 895mm round

Workpiece Weight

RXU1001DSH: Maximum 800 kg

RXU1001DBH: Maximum 300 kg

RXU1201DSH: Maximum 1,500 kg

RXU1201DSXH: Maximum 1,500 kg

Feed

All models: 0–60,000mm/min

Milling Spindle

Spindle options available from high torque 102Nm or high speed 120,000rpm for a range of applications

Tool Changer

RXU1001DSH: 24 (rotary – can be loaded during machining), optional: 40 places or more (chain changer – can be loaded during machining), integrated measuring laser

RXU1001DBH: 24 (rotary – can be loaded during machining), optional: 40 places or more (chain changer – can be loaded during machining), integrated measuring laser

RXU1201DSH: 50, optional 90 or more places (chain changer – can be loaded during machining), integrated measuring laserRXU1201DSXH: 50,

optional 90 or more places (chain changer – can be loaded during machining), integrated measuring laser

Chip Disposal

RXU1001DSH & RXU1001DBH: With 2 screws into chip box behind the machine
or with additional chip conveyor

RXU1201DSH & RXU1201DSXH: With 4 screws in the machining area into chip box
or chip conveyor behind the machine

Machine Weight & Dimensions

RXU1001DSH: ~21.0t and 3500mm x ~4814mm x 3600mm (W,L,H)

RXU1001DBH: ~21.0t and 3500mm x 5300mm x 3550mm (W,L,H)

RXU1201DSH: ~33.0t and 4205mm x ~5431mm x 4000mm (W,L,H)

RXU1201DSXH: ~33.4t and 4205mm x ~5431 mm x H 4535mm (W,LH)
