Röders 3-Axis RXP Series

1 3

The Röders 3-Axis RXP series delivers high-speed, high precision milling with linear motor drives, designed for tasks ranging from micromachining to large mould and toolmaking. These machines showcase extremely stiff portal constructions, short Z axis designs, and low vibration dynamics to ensure exceptional tool life and finish quality. The series spans several models, from compact models for micro detail work to spacious machines built for heavy-duty high-speed cutting such as transfer stamping dies. Equipped with integrated measurement options and advanced cooling systems, the Röders 3-Axis RXP series enable complete machining in a single setup with precision and accuracy.



The Röders 3-Axis RXP series is comprised of 4 models: RXP500, RXP501, RXP801, and the RXP950.


Highlights

  • Linear motor drives across all axes deliver extreme dynamics, no backlash, and zero wear.
  • Extremely rigid portal design with short Z-axis enhances stability, reduces vibration, and improves machining precision.
  • Range of models tailored for specific applications, from micro-focused machining to larger-capacity models suitable for mould and tool industry demands.
  • Advanced integration of measurement, cooling, and control features (e.g., 3D-contour measurement, spindle growth compensation, RMS6 control, and coolant options) ensures precision, efficiency, and finish quality.
View full details
Download Röders 3-Axis RXP Series BrochureRequest a Quote

Technical Specifications

Machining Range

RXP400: 410mm x 294mm x 210mm (X,Y,Z)

RXP500: 500mm x 455mm x 240mm (X,Y,Z)

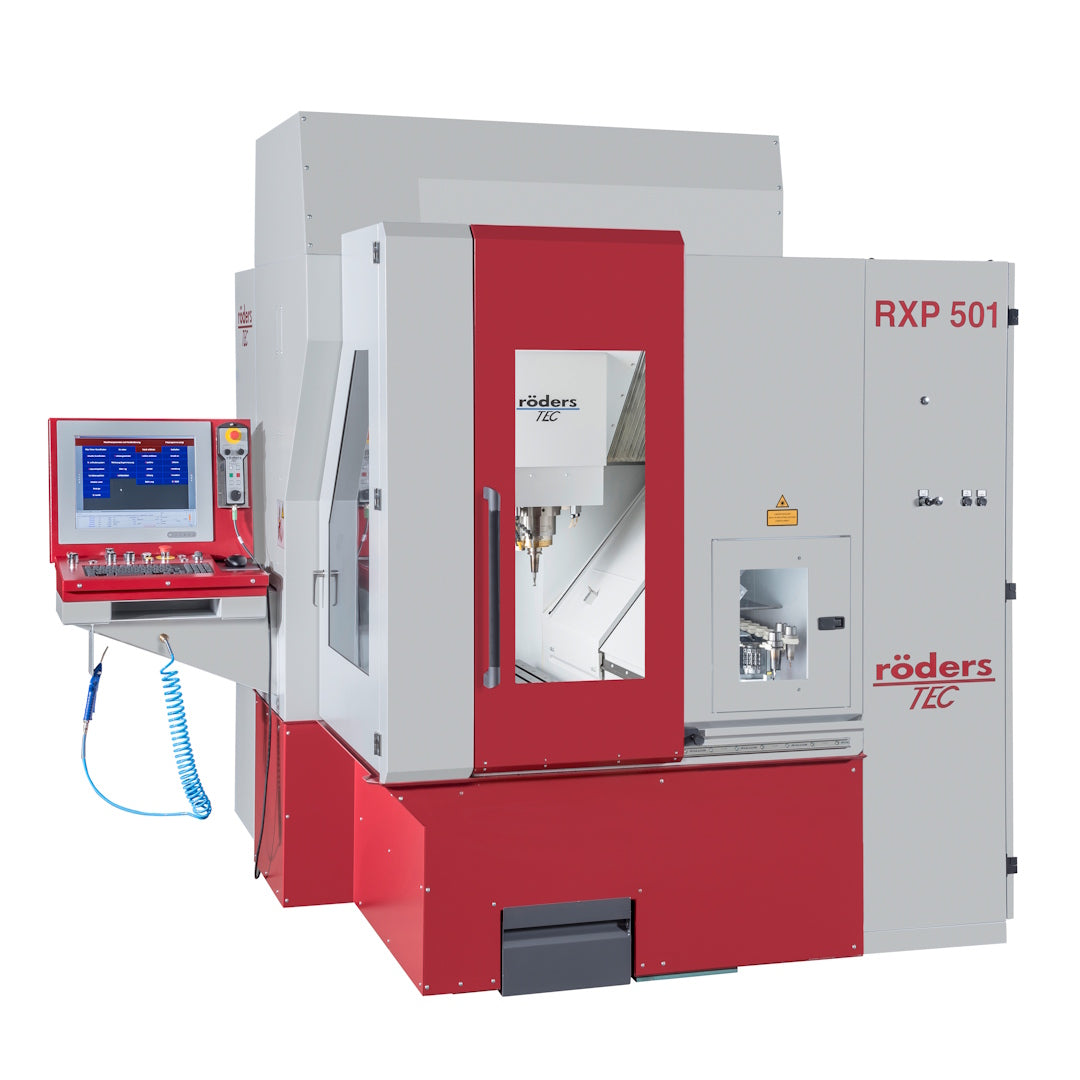

RXP501: 600mm x 500mm x 300mm (X,Y,Z)

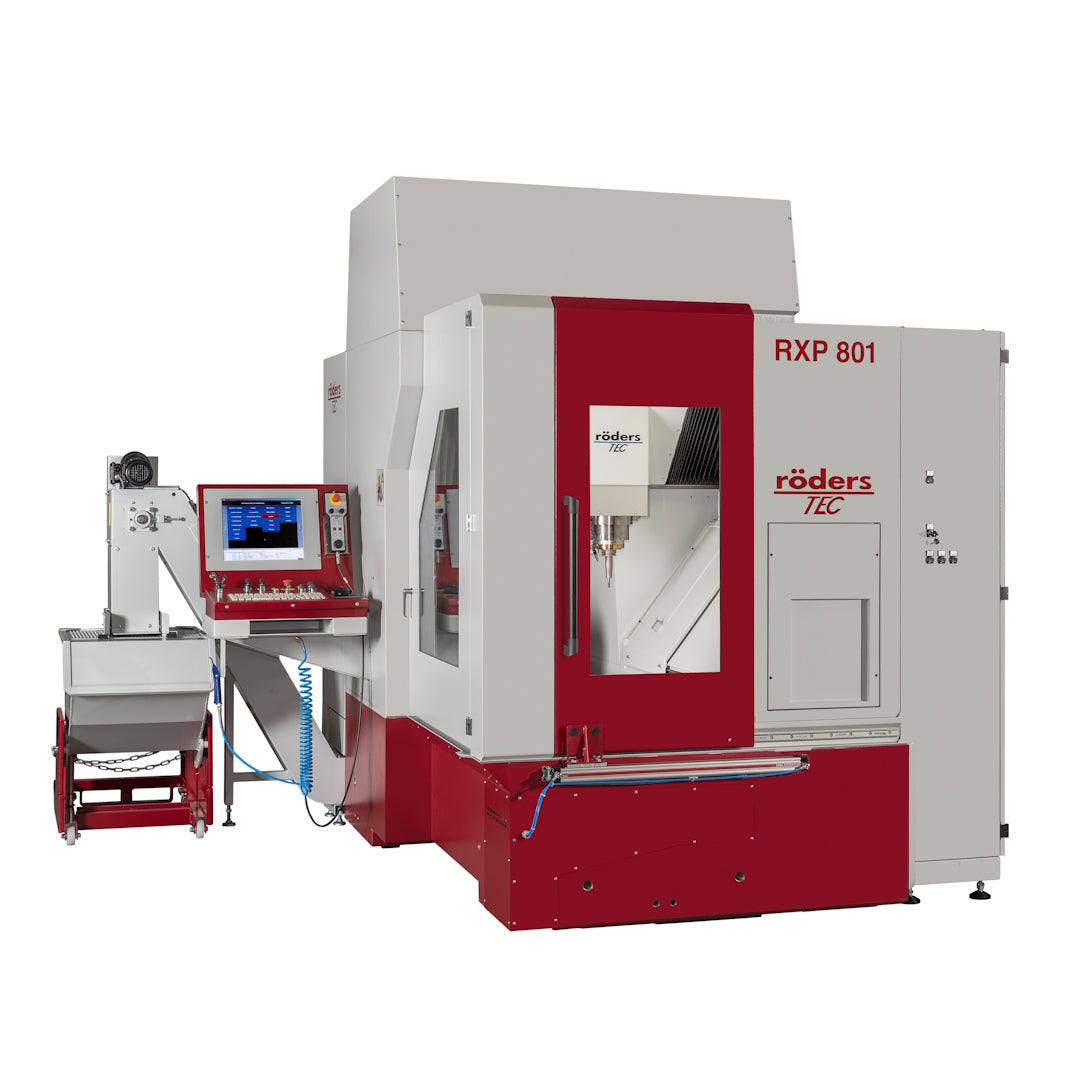

RXP801: 800mm x 635mm x 400mm (X,Y,Z)

RXP950: 950mm x 905mm x 500mm (X,Y,Z)

Table Size

RXP400: 450mm x 300mm, T‑slots 12 mm, distance 50mm (integrated chucks optional)

RXP500: 550mm x 450mm, T‑slots 14 mm, distance 50mm

RXP501: 554mm x 450mm, T‑slots 14 mm, distance 50mm

RXP801: 796mm x 596mm

RXP950: 950mm x 796mm

Maximum Height

RXP400: 330mm between spindle nose and machine table

RXP500: 450mm between spindle nose and machine table

RXP501: 500mm between spindle nose and machine table

RXP801: 615mm between spindle nose and machine table

RXP950: 700mm between spindle nose and machine table

Workpiece Weight

RXP400: Maximum 100kg

RXP500: Maximum 400kg

RXP501: Maximum 400kg

RXP801: Maximum 800kg

RXP950: Maximum 2,000kg

Feed

RXP400 & RXP500: 0–42,000mm/min

RXP501, RXP801, & RXP950: 0–60,000mm/min

Milling Spindle

Spindle options available from high torque 102Nm or high speed 120,000rpm for a range of applications

Tool Changer

RXP400: 18 places (linear), optional 40, 70 or more places (chain changer – can be loaded during machining), integrated measuring laser

RXP500: 21 (linear), optional 35 or more places (chain changer – can be loaded during machining), integrated measuring laser

RXP501: 35 places for HSK E40 (chain changer – can be loaded during machining), optional more places, integrated measuring laser

RXP801: 36 for HSK E50, optional 76 or more places (chain changer – can be loaded during machining), integrated measuring laser

RXP950: 40 for HSK E50, optional 94 or more places (chain changer – can be loaded during machining), integrated measuring laser

Chip Disposal

RXP400: In 1 chip box, optional chip conveyor

RXP500 & RXP501: In 2 chip boxes, optional chip conveyor

RXP801 & RXP950: With 2 screws into chip box behind the machine,
additional chip conveyor optional

Machine Weight & Dimensions

RXP400: ~3.2 and 2515mm x 1930mm x 2080mm (W,LH)

RXP500: ~6.0t and 2710mm x 2350mm x 2350mm (W,LH)

RXP501: ~6.5t and 2800mm x 2450mm x 2520mm (W,LH)

RXP801: ~8.4t and 2900mm x ~2950mm x ~2820-2960mm (W,LH)

RXP950: ~14.5t and 3350 mm x 3350mm x 3180mm (W,LH)
