DATRON MLCube Pro

1 5

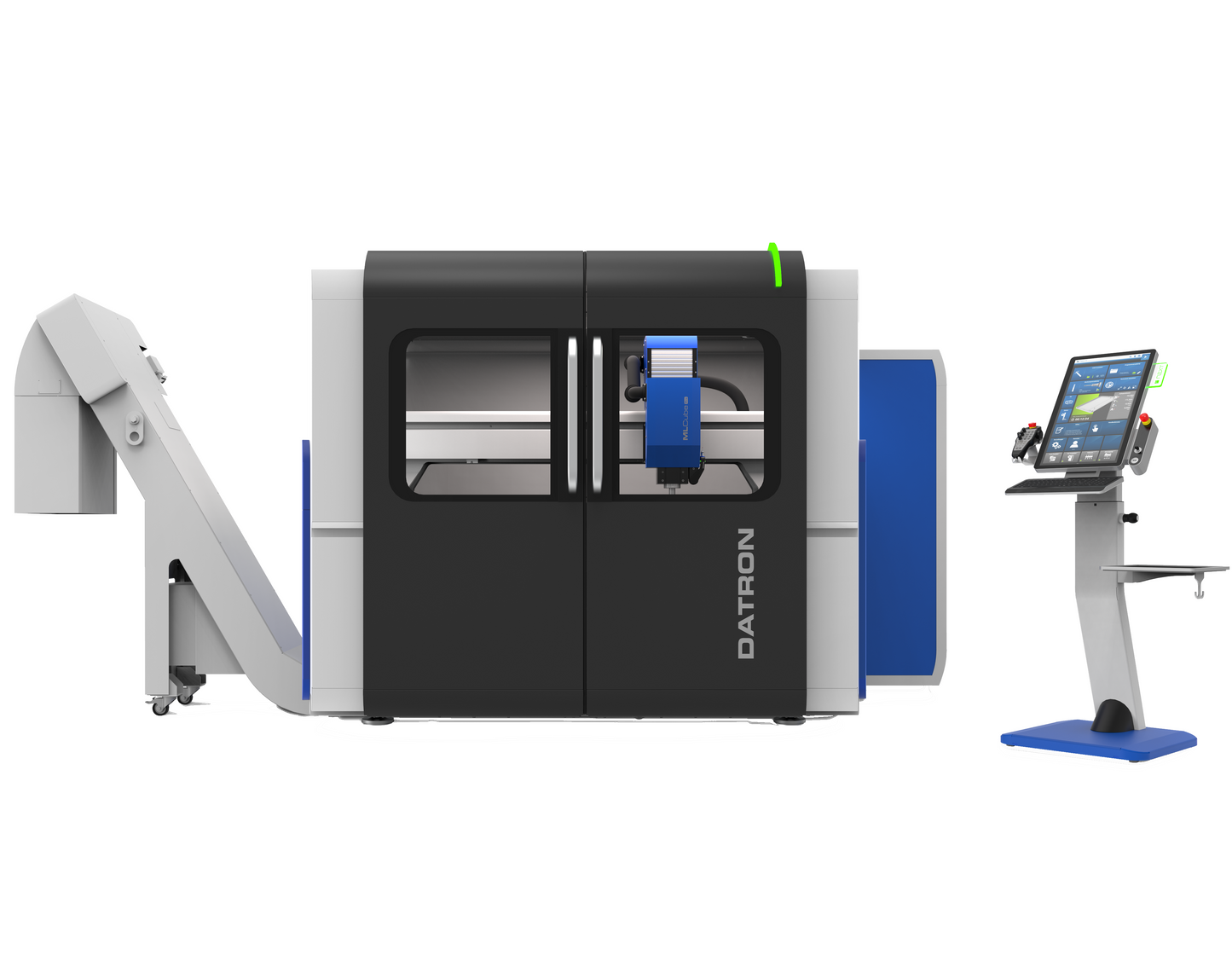

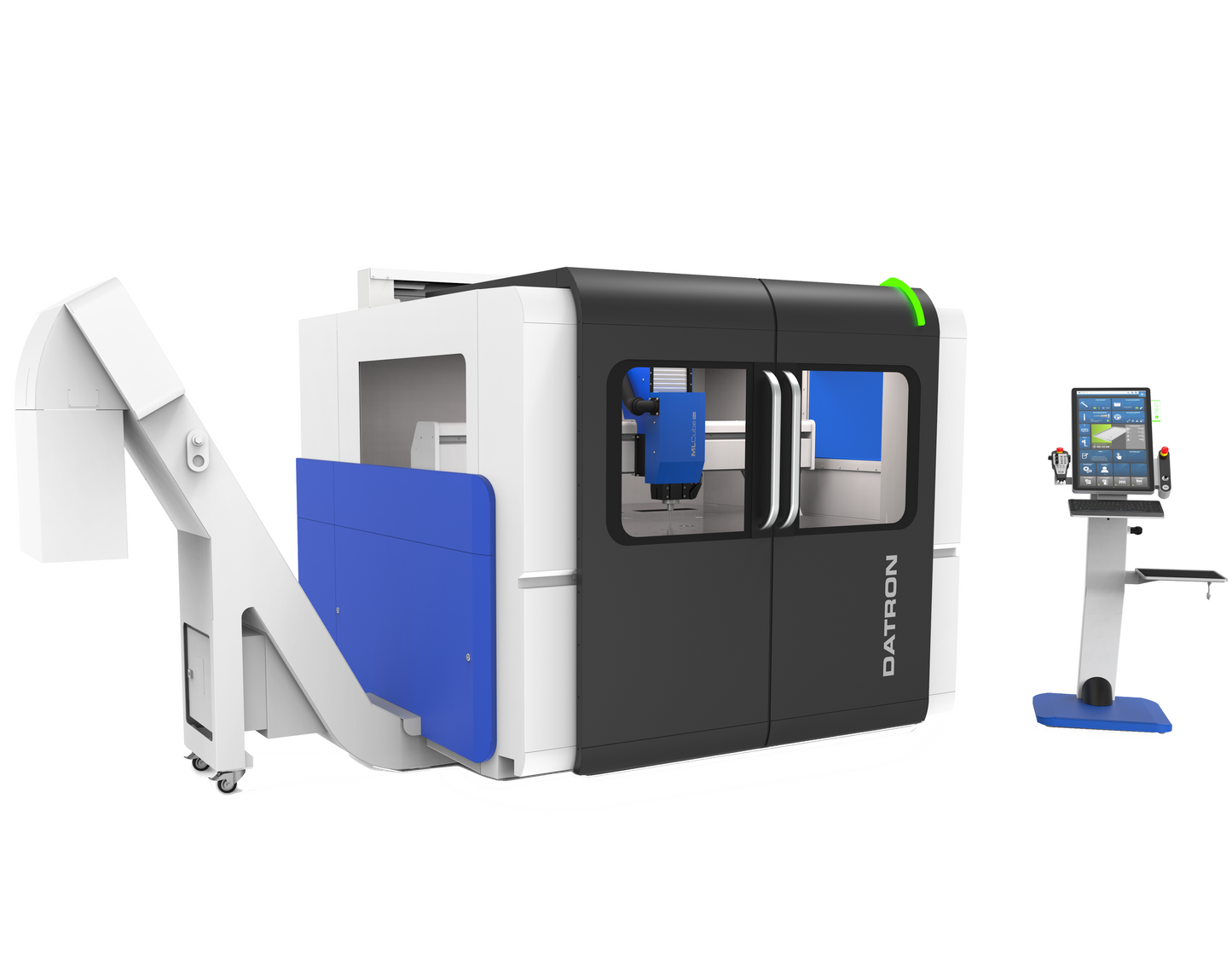

The DATRON MLCube Pro is the premium product of the DATRON MLCube series and ideal for customers with high metal removal rates. It offers an improved loading concept with automatic hinged doors and crane loading. The optimised chip concept with additional chip conveyor ensures efficient chip removal. The external DATRON ToolAssist tool changer enables tools to be loaded and unloaded during machining. The DATRON MLCube Pro is for high performance and efficiency in industrial production.



Highlights

  • High-power spindle up to 60,000rpm
  • Integrated chip conveyor ensures clean, uninterrupted operation
  • Crane-ready access and auto-opening doors for efficient material handling
  • External ToolAssist enables tool changes during machining for continuous production
View full details
Download DATRON MLCube Pro BrochureRequest a Quote

Technical Specifications

Machine Travels

1520mm x 1150mm x 245mm (40" x 33" x 10") (XYZ)

Working Area

1500mm x 1000mm x 200mm (39" x 27.5" x 7.5") (XYZ)

Feeds & Rapids

Up to 22m/min feeds & rapids

Spindle

3.0 kW – 4.0 kW up to 40,000 rpm; HSK-E 25

Productivity Solutions

Built in Renishaw touch probe with intuitive touchscreen-based probe programming

Range of smart workholding options including Vacuum Tables, Short Stroke Pneumatic Clamping and built-in Zero Point Modular Clamping plates

Optional 4th and 5th Axis processing

Automatic Tool Changer

Up to 143 Station Automatic Tool Changer with DATRON ToolAssist

Integrated tool length measurement

Control System

DATRON next control with full colour 24” touchscreen

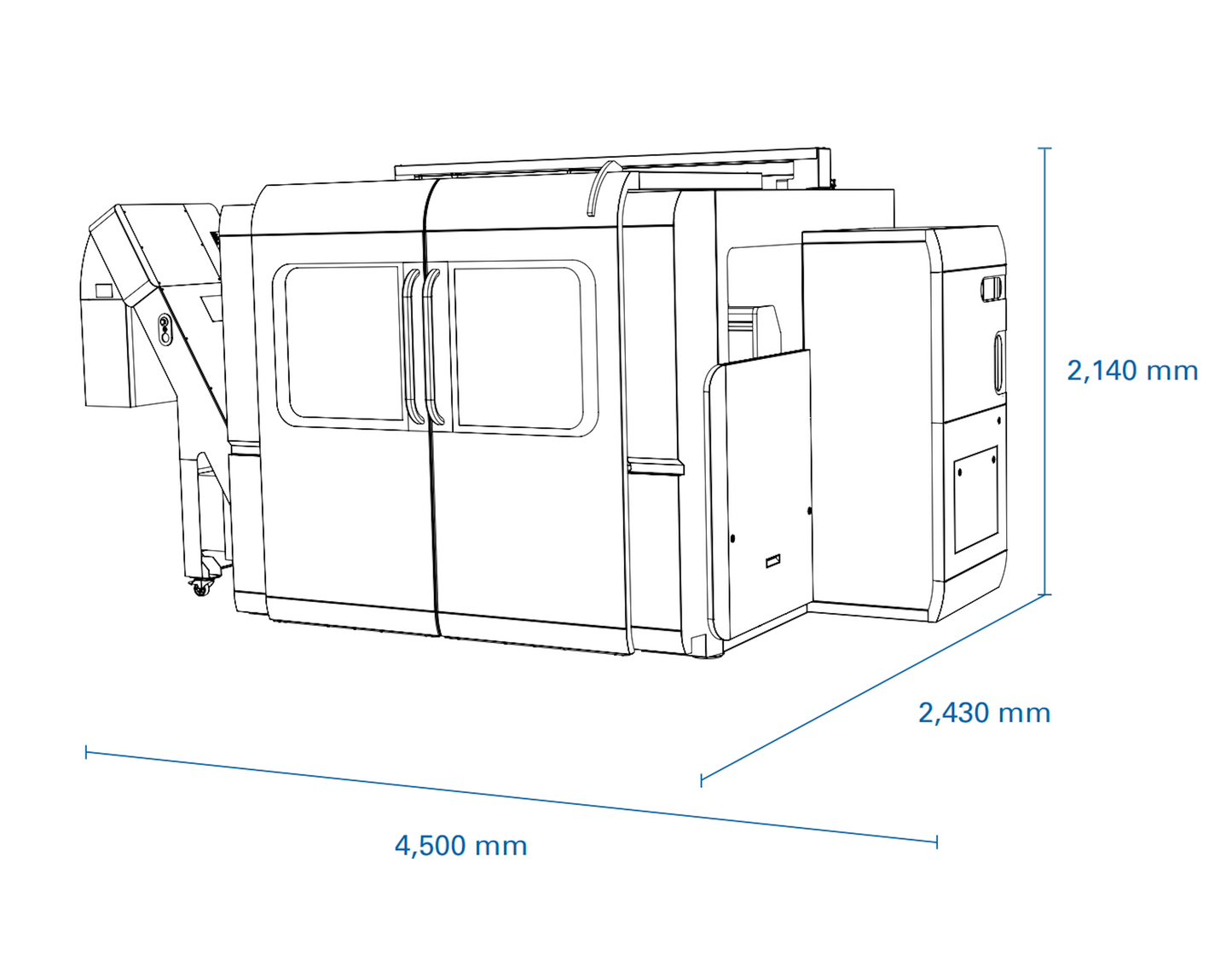

Machine Weight & Dimensions

Footprint: 4500mm x 2430mm x 2140mm (177" x 96" x 84") (69" x 69" x 77") (W x D x H)

Weight: ~3200kg

DATRON MLCube Pro Highlights

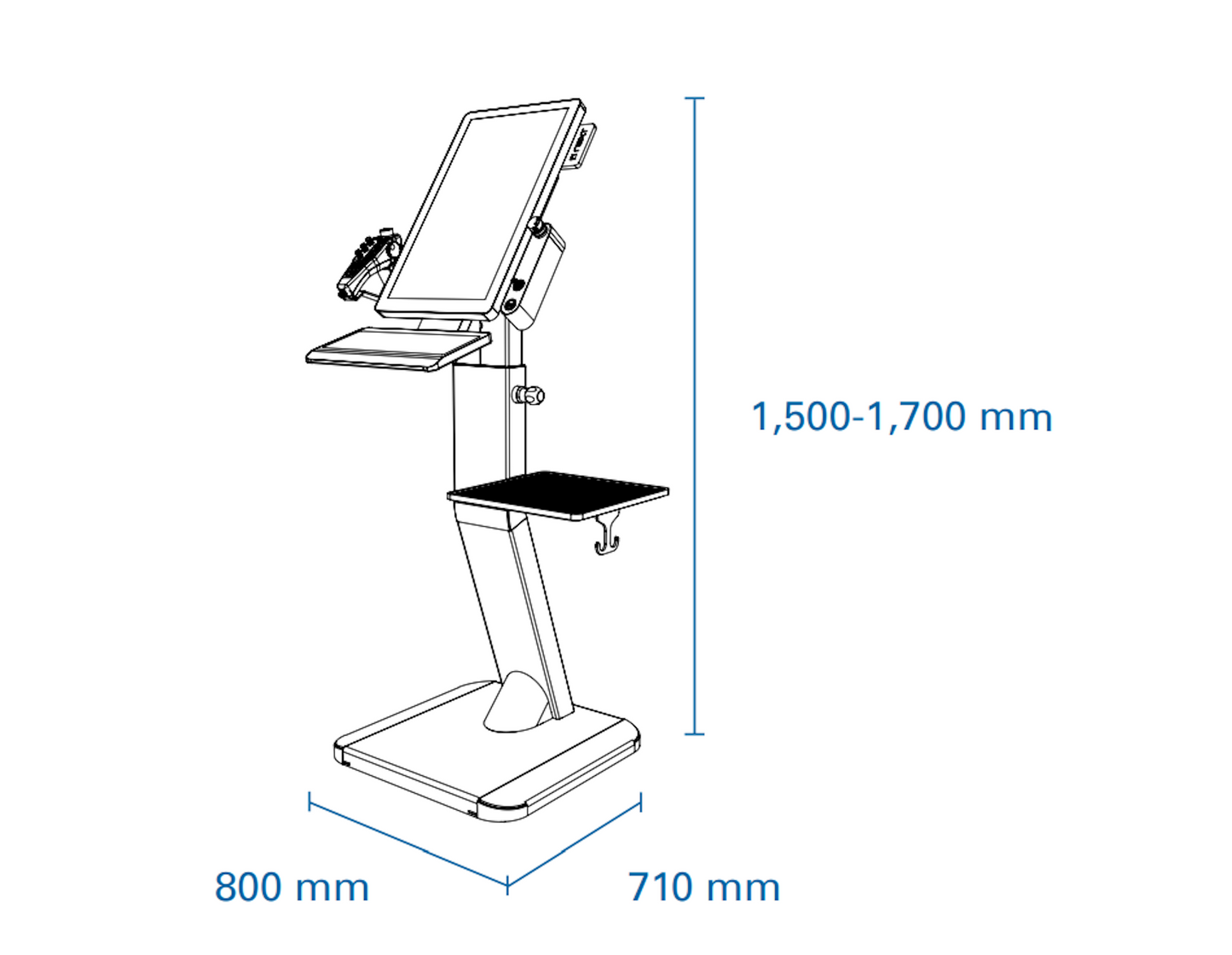

  • Stand-alone Terminal

    • Flexible positioning
    • Adjustable height and tilt
    • Can be easily moved on the floor

  • Large Working Surface

    • Ideal for milling components combined in a sheet

  • Linear Encoders

    • Equipped with precise linear encoders for applications with the highest accuracy requirements

  • High-precision Spindle

    • High-precision spindle with concentricity better than 2 μm and an HSK-E 25 tool-holding fixture (optional)

  • Optimal Chip Removal

    • Steep angles on all sloping surfaces and a chip conveyor ensure optimal chip removal

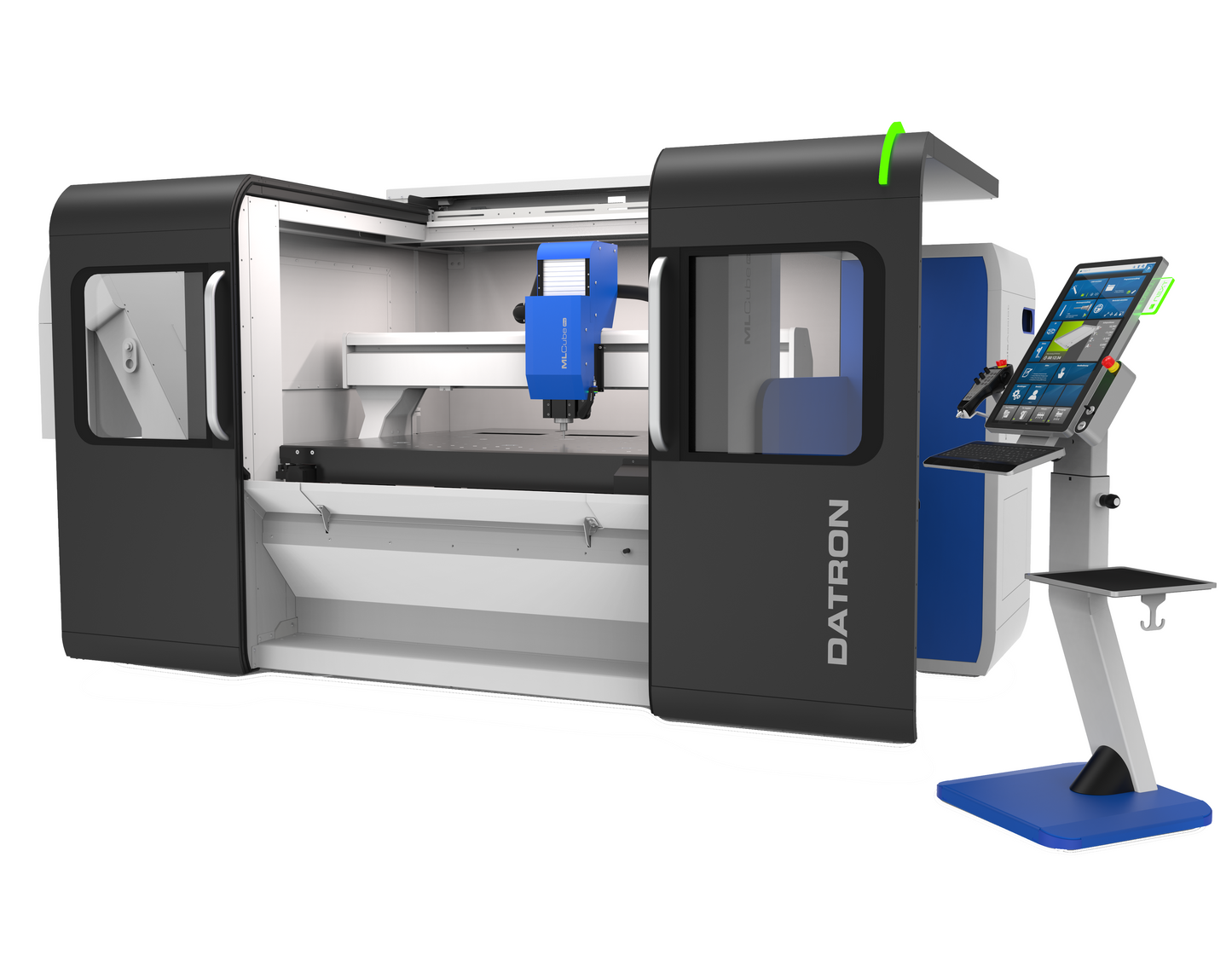

  • Loading Concept

    • Double doors opening wide to left and right with automatic drives (width with doors open is 1699 mm)
1 6

DATRON MLCube Pro Accessories

  • 4 and 5-Axis Machining

    • Extend the possibilities of multi-sided machining and round engraving
    • Specially designed module for fast and precise positioning on the machine table
    • 5-axis milling with rotary/ swivel table for precise multi-sided machining of small parts

  • Linear Scales

    • Provides direct position feedback for each axis using high-resolution measurement for extra precision activities
    • Enhances machining accuracy and repeatability by compensating for thermal or mechanical drift

  • Suction CleanCut

    • Combines chip extraction and air flow control to clear debris during slotting and contouring.
    • Improves surface quality and cost efficiency and reduces cleaning time

  • Vacuum Table

    • New vacuum clamping technology with the possibility of electrically enabling/disabling different segments for increased precision, efficiency, and quality
    • Enables fast setup and uniform holding without damaging delicate materials

  • PerfectCut

    • A proprietary technology that optimises machine dynamics and toolpath smoothing
    • Produces exceptional edge quality and finish, especially in delicate or thin materials

  • Dust Extraction System

    • Removes dust and small chips from the cutting area while machining
    • Improves visibility, cleanliness, and surface finish while protecting machine components

  • Vision System

    • Captures real-time images of the workpiece for visual alignment and setup
    • Speeds up positioning and reduces setup errors, even on complex parts

  • Clamping Systems

    • Low profile mechanical and pneumatic vices with soft jaws
    • Table cutout for vertical clamping technology, appropriate for machining high components

  • Tool Life Management

    • Automatically tracks tool wear and replaces tools when they reach their preset lifespan
    • Prevents unexpected tool failure, ensuring consistent quality and uninterrupted production

  • Surface Profiling

    • Measurement and mapping of 3D surfaces and compensation of variances
    • Ensures consistent material thickness and superior surface finish across wide panels

  • Automation Integrations

    • 24 volt I/O connections for robots, cobots, or pallet systems
    • Enables unattended, high-efficiency production through automated part handling, door control, and system integration

1 11

DATRON MLCube Pro Areas of Application

Electronics

  • Front panels and housings
  • Membrane keyboards
  • Test adapter drilling
  • Drilling and milling of test devices
  • Milling of solder frames
  • PCB milling
  • Plastic sheet processing
  • Composites
  • GRP/CRP materials

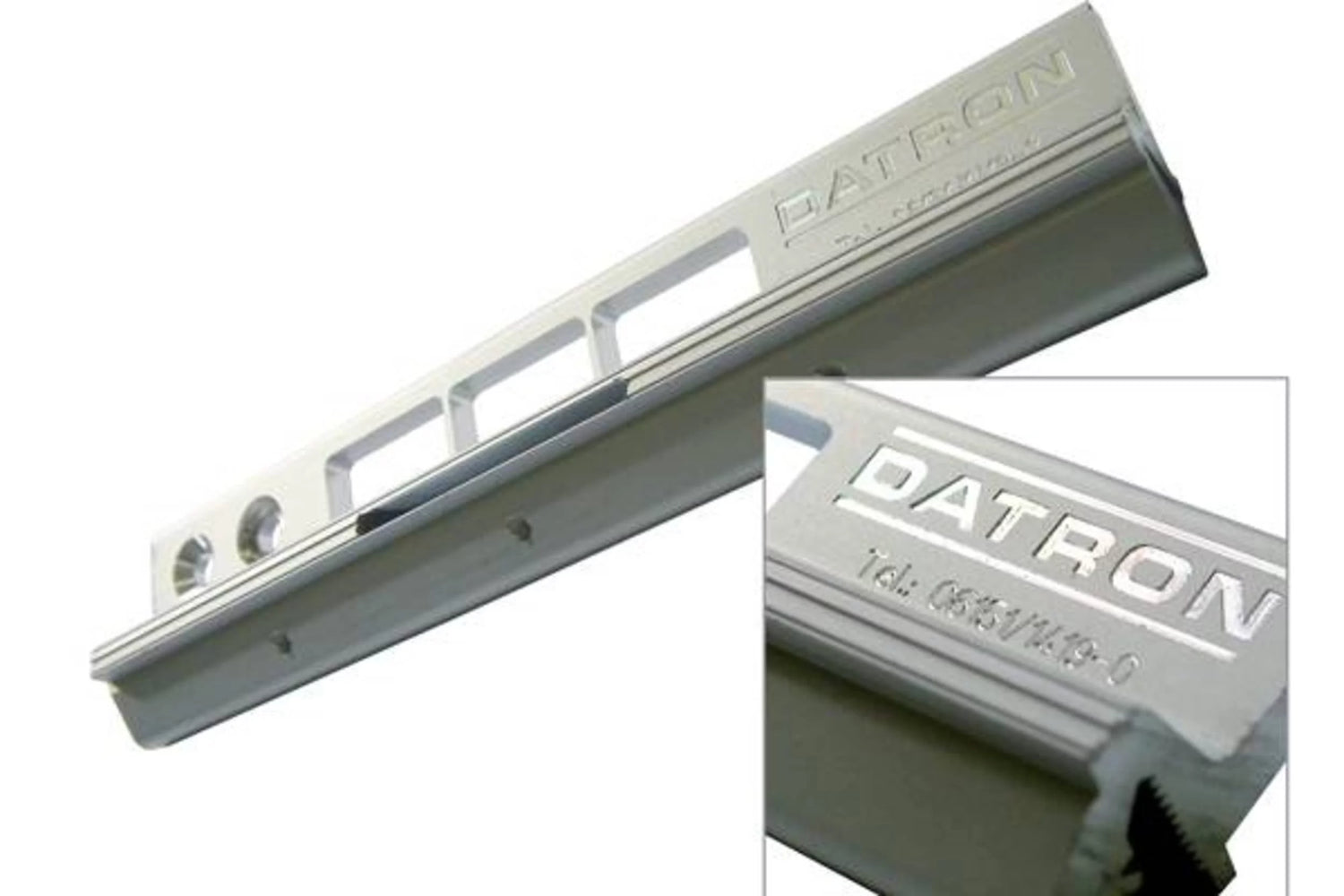

Aerospace

  • Machining of aluminium plates
  • Machining of aluminium profiles

Advertising & Printing

  • Processing of signs
  • Processing of profiles
  • Hot stamping dies
  • Stamping tools

Additional Sectors

  • Medical Technology
  • Automotive Industry
