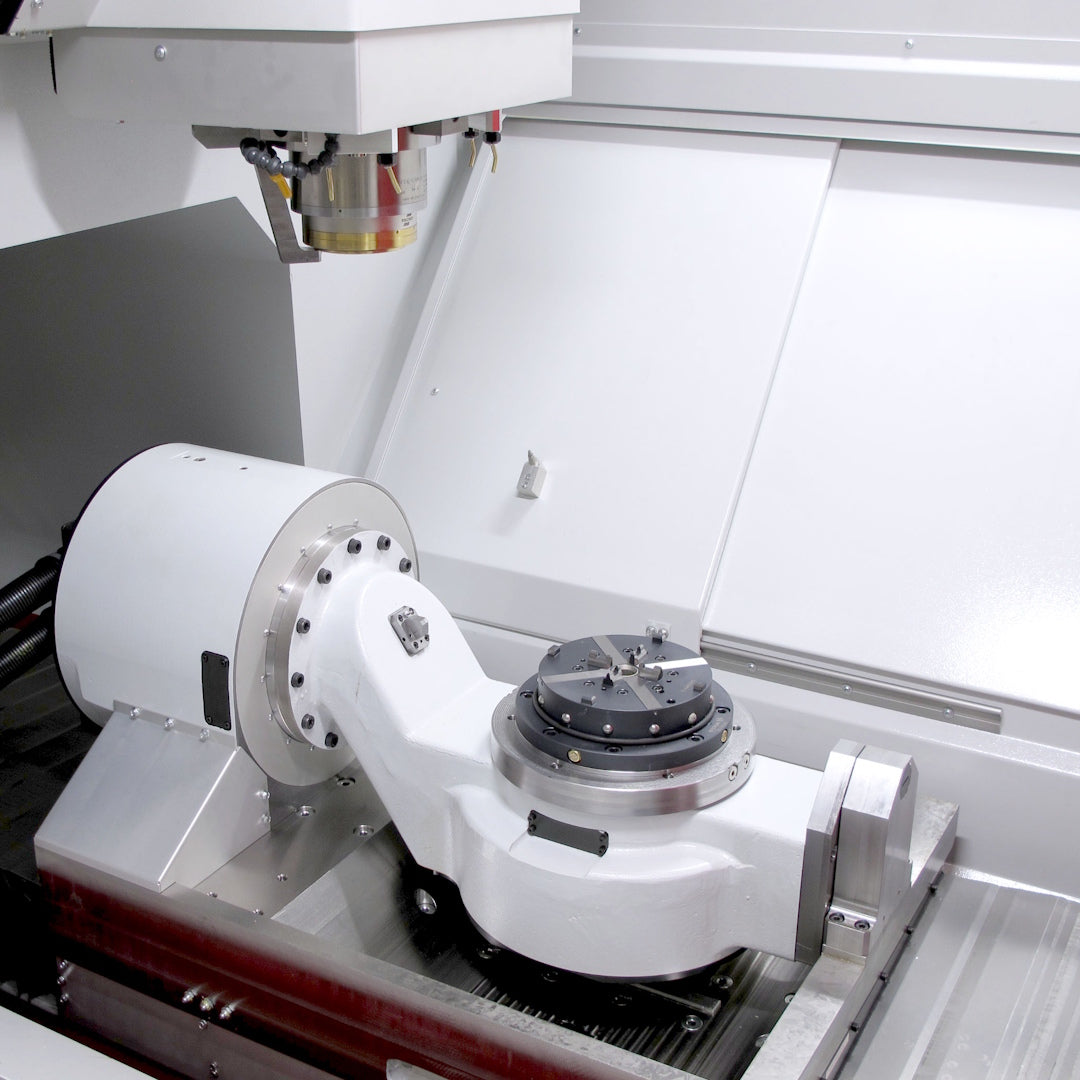

Röders 5-Axis RXP Series

1 5

The Röders 5-Axis RXP series is a line of high-speed cutting machining centres built for extreme precision, dynamic performance, and superior surface quality. With rigid portal designs, linear/torque motors, and advanced compensation systems, they deliver unmatched stability and accuracy even in complex multi-axis operations. The series ranges from compact models to large, heavy-duty machines, making it suitable for industries like aerospace, mould and die, and high-precision component manufacturing.



The 5-Axis RXP Series features 9 models: RXP400DS, RXP400DSC, RXP500DS, RXP500DSC, RXP501DS, RXP501DSC, RXP601DS, RXP601DSH, and the RXP950DSH.



Highlights:

  • Linear motor drives in all axes for extreme dynamics and no wear
  • Swivel/rotary axes with counter bearings for rigidity and stability
  • Integrated temperature control, encoders, and laser tool length sensor for precision
  • Wide model range to suit small intricate parts through to large, heavy workpieces
View full details
Download Röders 5-Axis RXP Series BrochureRequest a Quote

Technical Specifications

Machining Range

RXP400DS & RXP400DSC: 310mm x 294mm x 210mm (X,Y,Z)

RXP500DS & RXP500DSC: 450mm x 455mm x 240mm (X,Y,Z)

RXP501DS & RXP501DSC: 500mm x 500mm x 300mm (X,Y,Z)

RXP601DS: 520mm x 635mm x 400mm (X,Y,Z)

RXP601DSH: 540mm x 635mm x 400mm (X,Y,Z)

RXP950DSH: 600mm x 905mm x 500mm (X,Y,Z)

Swivelling Range

RXP400DS & RXP400DSC: -30/+115 degrees

All other models: +/-115 degrees

Rotation Range

All models: Almost unlimited

Table Size

RXP400DS & RXP400DSC: 199mm (integrated chuck optional)

RXP500DS: 250mm (integrated chuck optional)

RXP500DSC: 200mm (integrated chuck optional)

RXP501DS: 250mm (integrated chuck optional)

RXP501DSC: 200mm (integrated chuck optional)

RXP601DS & RXP601DSH: 340mm round or 340mm square, 400mm round with two flattened sides or 400mm round

RXP950DSH: 400mm round or 400mm square, 600mm round with two flattened sides or 600mm round

Workpiece Weight

RXP400DS & RXP400DSC: Maximum 15kg

RXP500DS: Maximum 60kg

RXP500DSC: Maximum 30kg

RXP501DS: Maximum 60kg

RXP501DSC: Maximum 30kg

RXP601DS: Maximum 100kg

RXP601DSH: Maximum 200kg

RXP950DSH: Maximum 800kg

Feed

RXP400DS, RXP400DSC, RXP500DS, & RXP500DSC: 0–42,000mm/min

RXP501DS, RXP501DSC, RXP601DS, RXP601DSH, & RXP950DSH: 0–60,000 mm/min

Milling Spindle

Spindle options available from high torque 102Nm or high speed 120,000rpm for a range of applications

Tool Changer

RXP400DS & RXP400DSC: 16 (linear), optional 40, 70 or more places (chain changer – can be loaded during machining), integrated measuring laser

RXP500DS & RXP500DSC: 21 (linear), optional 35 or more places (chain changer – can be loaded during machining), integrated measuring laser

RXP501DS & RXP501DSC: 35 places for HSK E40
(chain changer – can be loaded during machining), optional more places, integrated measuring laser

RXP601DS & RXP601DSH: 36 for HSK E50, optional 76 or more places (chain changer – can be loaded during machining), integrated measuring laser

RXP950DSH: 40 for HSK E50, optional 86 or more places (chain changer – can be loaded during machining), integrated measuring laser

Chip Disposal

RXP400DS & RXP400DSC: In 1 chip box (optional chip conveyor)

RXP500DS, RXP500DSC, RXP501DS, & RXP501DSC: In 2 chip boxes (optional chip conveyor)

RXP601DS, RXP601DSH, & RXP950DSH: With 2 screws into chip box behind the machine (additional chip conveyor optional)

Machine Weight & Dimensions

RXP400DS: ~3.2t and 2515mm x 1930mm x 2080mm (W,L,H)

RXP400DSC: ~3.2t and 2515mm x 1930mm x 2170mm (W,L,H)

RXP500DS & RXP500DSC: ~6.5t and 2710mm x 2350mm x 2350mm (W,L,H)

RXP501DS & RXP501DSC: ~7.0t and 2800mm x 2450mm x 2520mm

RXP601DS: ~9.7t and 2900mm x 2950mm x ~2820-2960mm (W,L,H)

RXP601DSH: ~10.2t and 2950mm x 2950mm x ~3070-3210mm (W,L,H)

RXP950DSH: ~15.5t and 3350mm x 3250mm x 3500 mm (W,L,H)
