Röders 3-Axis CNC Machining Centres
Röders’ 3‑axis milling machines deliver industry-leading precision and dynamic high-speed machining across multiple models. Designed for applications ranging from micro‑machining and minting to medium‑sized mould and tool production, these versatile machines feature HSK spindles up to 120,000rpm, integrated laser measurement, and automated tool changers for single‑setup efficiency. Engineered for reliability and precision, they provide optimal chip management and compact, rigid designs that ensure exceptional surface quality and productivity.
Röders Technology for High Speed Cutting
-
External Compensation of the Spindle Elongation
- Implemented with an accurately temperature-controlled holder attached directly in the cast of the Z axis
- With a sensor for non-contact measure-ment on the rotating spindle shaft
- Resolution in the nanometer range
-
Large Tool Changer
- Self-designed tool changer solutions with various speeds and sizes up to 199 tool places
-
Measuring Laser in the Tool Changer
- Measuring laser and calibration sphere located outside the machining area, where they are protected against chips and emulsion or oil
-
Spray Cleaning
- Patented tool spray cleaning with solvent, followed by automatic drying for reliable, highly accurate laser measurement
-
3D Touch Probe
- High-precision measurement of workpieces with the 3D probe directly in the machine, cleaning with coolant before measurement possible, for automated machines optional feedback of the measuring results to the central database
-
Emulsion, Oil, & Others
- Whether dry machining, using minimal lubrication, standard coolant or oil, solutions with accurate temperature control available for all variants
- Suction units for graphite or ceramic machining optional

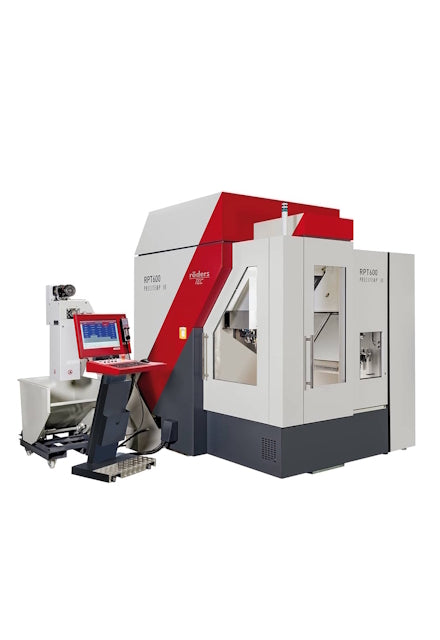

Röders RPT Series
The Röders 3-Axis RPT Series is a compact 3-axis milling, grinding, and measuring centre engineered for maximum precision, exceptional surface quality, and shorter processing times. Featuring PRECITEMP® thermal control and the NANOTOL® guideway concept, it achieves nanometre-level running accuracy and outstanding surface finishes. The Röders 3-Axis RPT Series is ideal for optical applications, high gloss mould tools, and ultrahigh precision milling and jig grinding.

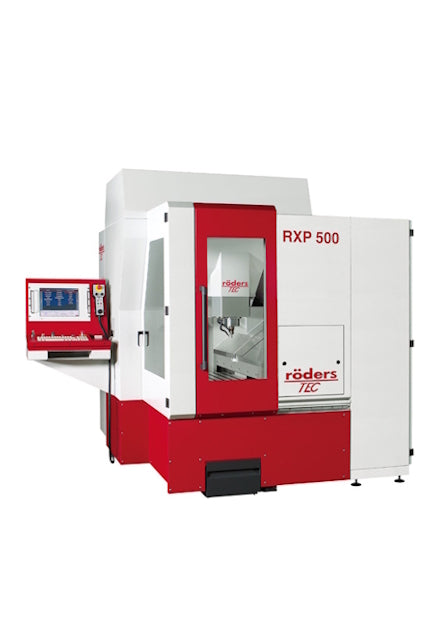

Röders RXP Series
The Röders 3-Axis RXP series delivers high-speed, high-precision milling with linear motor drives. The range spans compact models for micro-detail work to large machines for heavy-duty high-speed cutting, such as transfer stamping dies. Its stiff portal construction, short Z-axis design, and low-vibration dynamics maximise tool life and surface finish quality. Integrated measurement systems and advanced cooling enable complete, precise machining in a single setup.

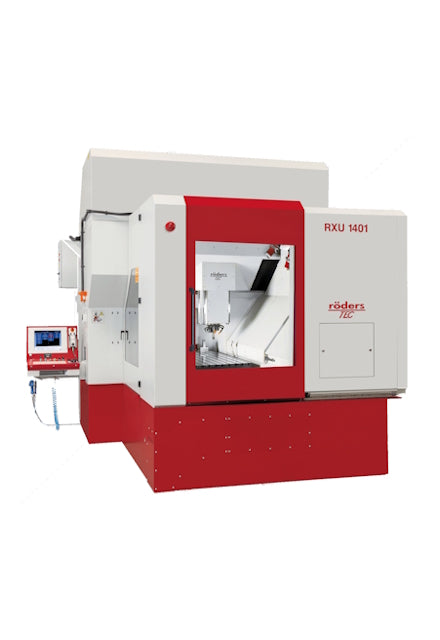

Röders RXU Series
The Röders 3-Axis RXU series combines the patented QUADROGUIDE® design with direct-drive axes, powerful spindles, and rapid feeds up to 60m/min for exceptional rigidity and precision. With models suited to everything from mould-and-die to aerospace and large components, they excel in heavy-duty, single-setup machining, even on hardened materials.
