Röders 5-Axis CNC Machining Centres
Röders 5-axis CNC milling machines deliver unmatched precision and dynamic high-speed machining performance for complex 3D geometries. These machines are designed for aerospace, medical device manufacturing, and high-end mould and die production. Engineered
in Germany, the Röders 5-axis milling machines deliver unmatched simultaneous 5-axis performance utilising HSK spindles up to 50,000 rpm and advanced thermal stability for micron-level precision. With integrated
automation, intelligent process monitoring, and rigid, vibration-damped
construction, Röders 5-axis milling machines ensure exceptional surface
quality, reduced cycle times, and reliable productivity for the most demanding applications.
Röders Technology for High Speed Cutting
-
External Compensation of the Spindle Elongation
- Implemented with an accurately temperature-controlled holder attached directly in the cast of the Z axis
- With a sensor for non-contact measure-ment on the rotating spindle shaft
- Resolution in the nanometer range
-
Large Tool Changer
- Self-designed tool changer solutions with various speeds and sizes up to 199 tool places
-
Measuring Laser in the Tool Changer
- Measuring laser and calibration sphere located outside the machining area, where they are protected against chips and emulsion or oil
-
Spray Cleaning
- Patented tool spray cleaning with solvent, followed by automatic drying for reliable, highly accurate laser measurement
-
3D Touch Probe
- High-precision measurement of workpieces with the 3D probe directly in the machine, cleaning with coolant before measurement possible, for automated machines optional feedback of the measuring results to the central database
-
Emulsion, Oil, & Others
- Whether dry machining, using minimal lubrication, standard coolant or oil, solutions with accurate temperature control available for all variants
- Suction units for graphite or ceramic machining optional

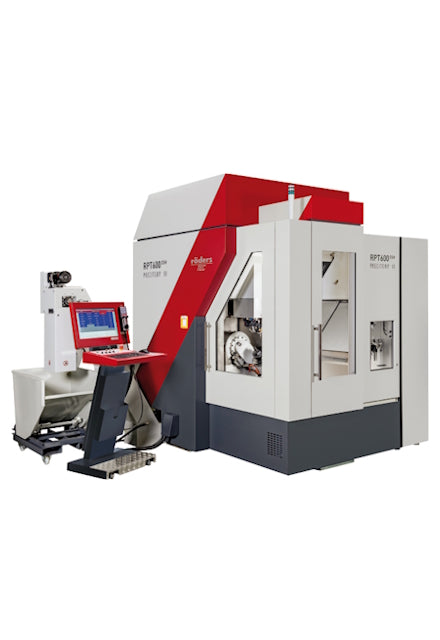

Röders RPT Series
The Röders 5-Axis RPT Series is a 5-axis milling, grinding, and measuring centre engineered for maximum precision, exceptional surface quality, and shorter processing times. Featuring PRECITEMP® thermal control and the NANOTOL® guideway concept, it achieves nanometre-level running accuracy. Its large C-axis offset reduces compensating movements of the linear axes, making it ideal for mould, die, and high-value production applications.

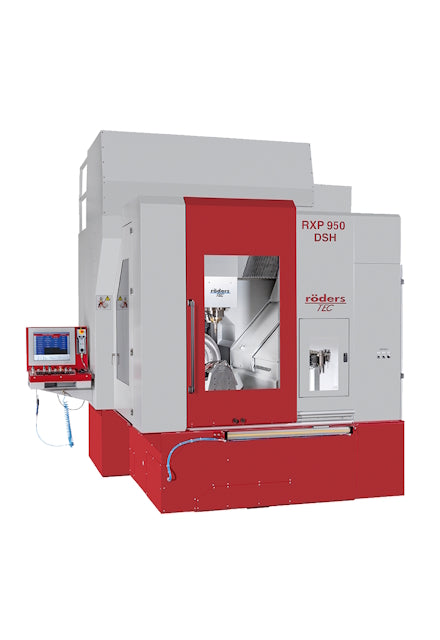

Röders RXP Series
The Röders 5-Axis RXP series is a line of high-speed cutting machining centres built for extreme precision, dynamic performance, and superior surface quality. With rigid portal designs, linear/torque motors, and advanced compensation systems, they deliver unmatched stability and accuracy even in complex multi-axis operations. The series ranges from compact models to large, heavy-duty machines, making it suitable for industries like aerospace, mould and die, and high-precision component manufacturing.

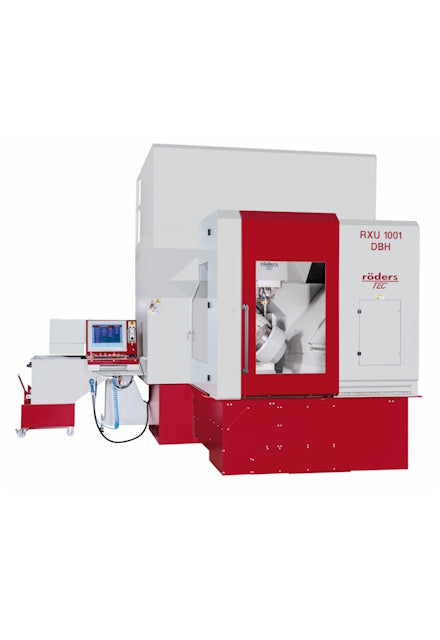

Röders RXU Series
The Röders 5‑Axis RXU series is engineered for high roughing capacity, extreme stiffness, and exceptional precision, thanks to its proprietary QUADROGUIDE® design that channels cutting forces directly into a robust machine bridge. They cater to diverse applications, from mould and die making to aerospace and medical parts, offering generous work envelopes and high feed rates up to 60m/min.
