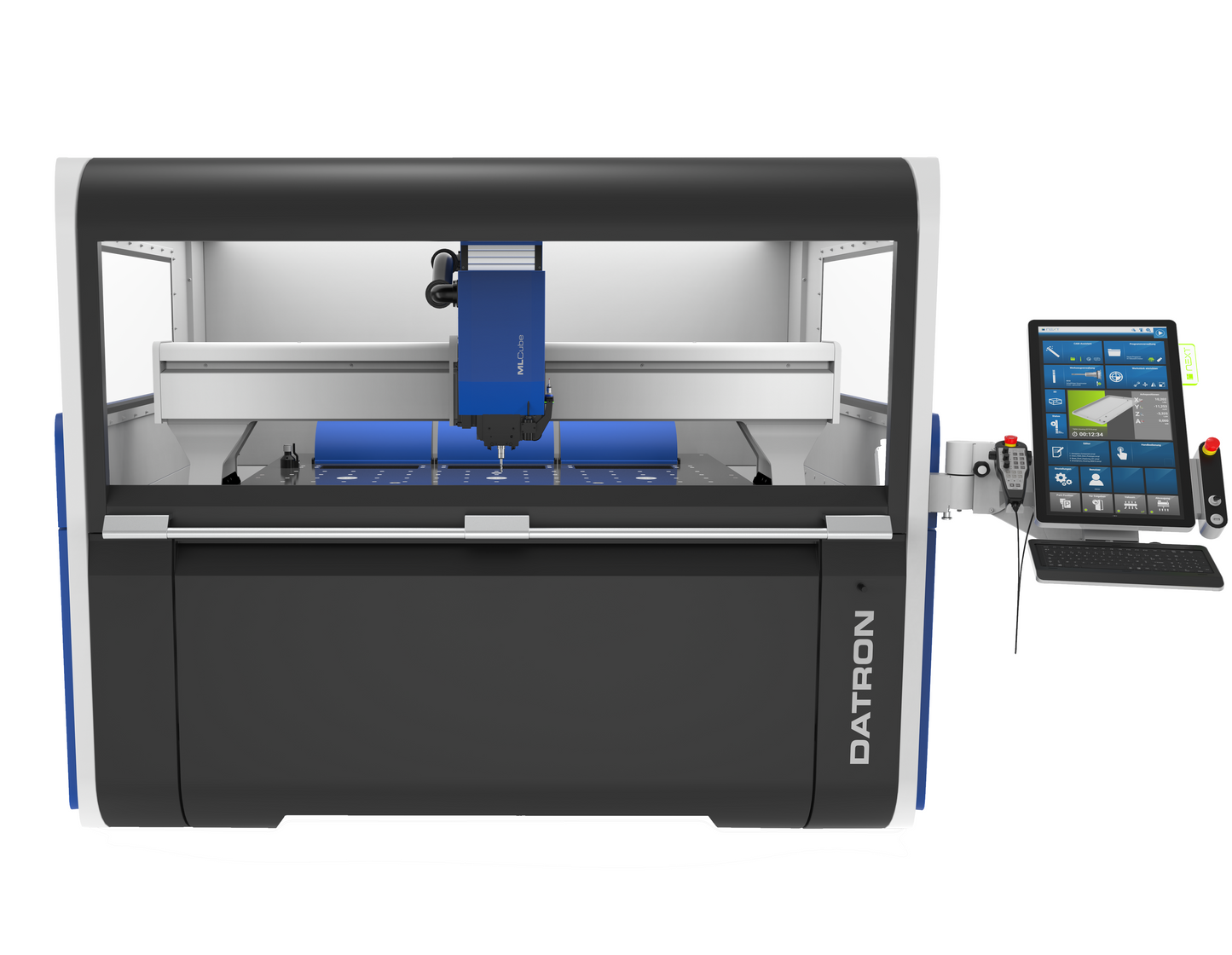

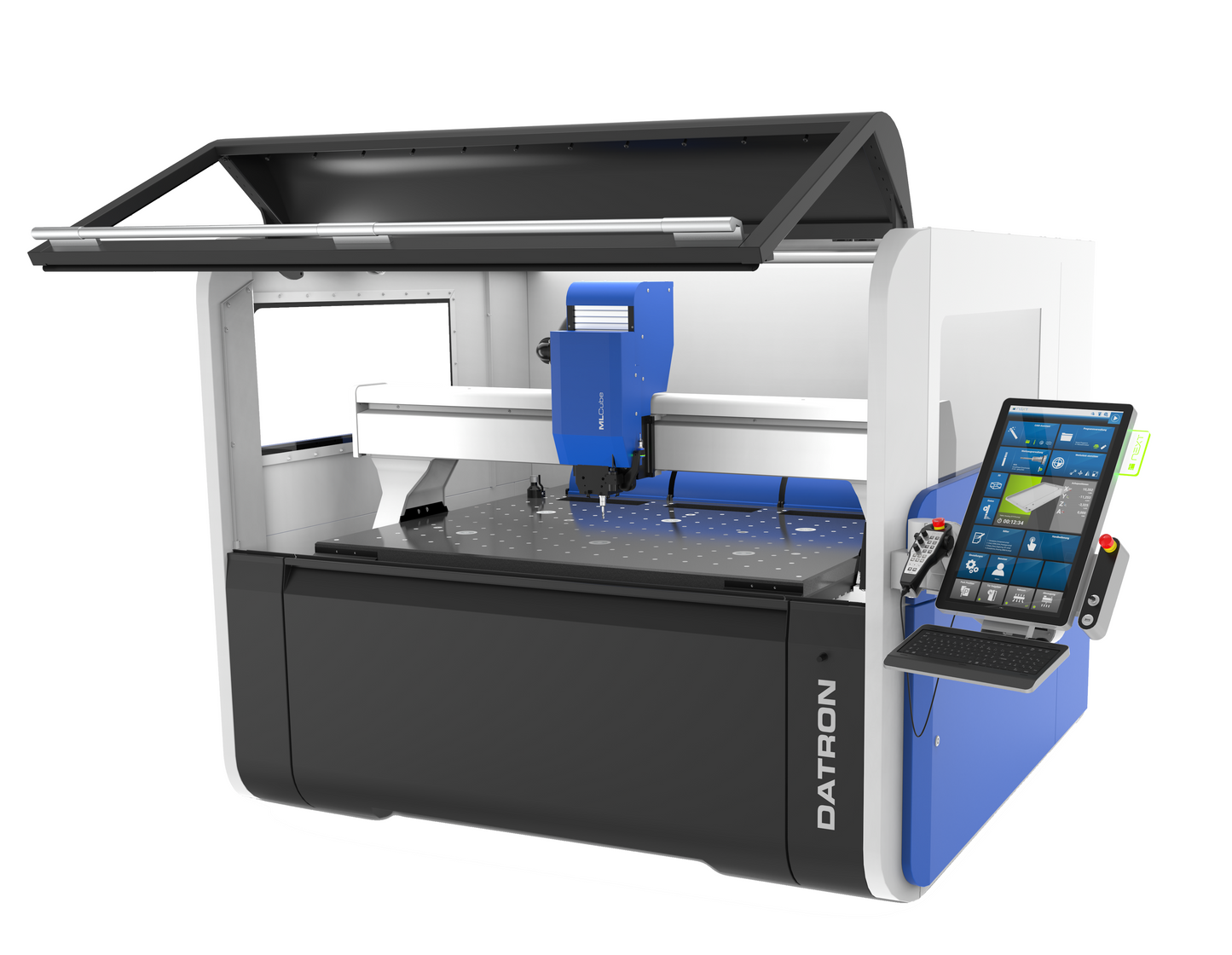

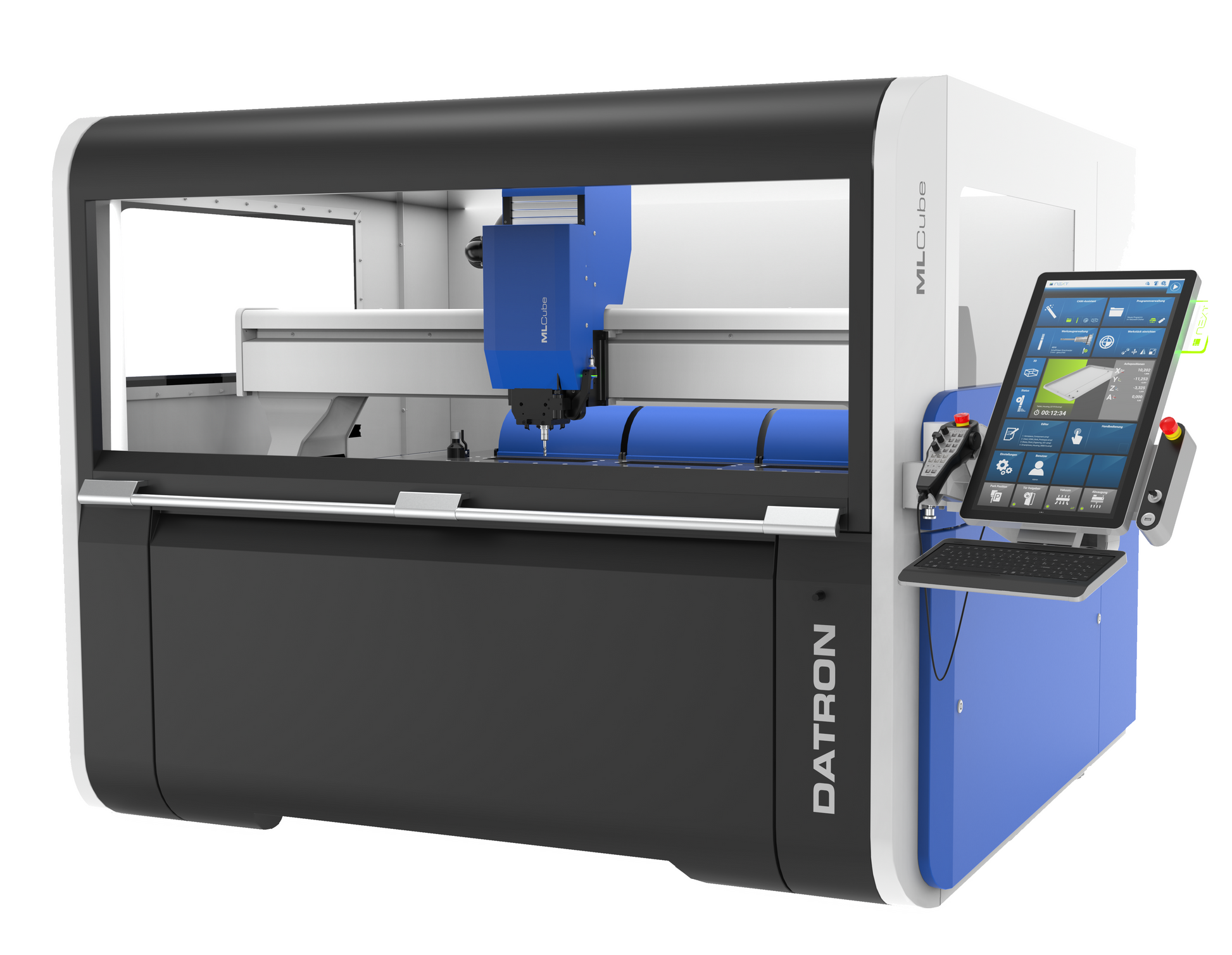

DATRON MLCube

1 7

The DATRON MLCube is the best choice for cost-effective sheet machining, including the production of front panels, housings, profiles and other aluminium workpieces milled in nested form. Other non-ferrous metals or composite materials can also be processed most efficiently with the MLCube. Its short setup times and its ability to use different clamping techniques simultaneously, its very low power consumption and its excellent price-to-performance ratio, even for low production volumes, provide long-term and extremely high profitability.



  • Extremely large working area requiring little floor space.
  • Vacuum clamping technology with the possibility of electrically enabling/disabling different segments.
  • Available with table cutout for vertical clamping technology, appropriate for machining high components (optional).
  • Contour smoothing package PerfectCut for fast, accurate and contour faithful HSC milling with excellent surface quality: your machine is more powerful and stays “fit” longer, even in cases of high-volume production (optional).
  • Chip carriage design with allocation to multiple containers (stackable) to promote work ergonomics.
View full details
Download DATRON MLCube BrochureRequest a Quote

Technical Specifications

Machine Travels

1040mm x 850mm x 270 mm (41" x 33.5" x 11") (XYZ)

Working Area

1000mm x 700mm x 200mm (39" x 27.5" x 7.5") (XYZ)

Feeds & Rapids

Up to 40m/min feeds & rapids

Spindle

4kW HSK-E25 60,000rpm ATC Spindle

8kW HSK-E32 34,000rpm ATC Spindle

Productivity Solutions

Built in Renishaw touch probe with Intuitive touchscreen based probe programming

Range of smart workholding options including; Vacuum Tables, Short Stroke Pneumatic Clamping and built in Zero Point Modular Clamping plates

Optional 4th and 5th Axis processing

Automatic Tool Changer

Up to 143 Station Automatic Tool Changer with HSK-E25 or 110 Station Automatic Tool Changer HSK-E32 with DATRON ToolAssist.

Integrated tool offset probing

Control System

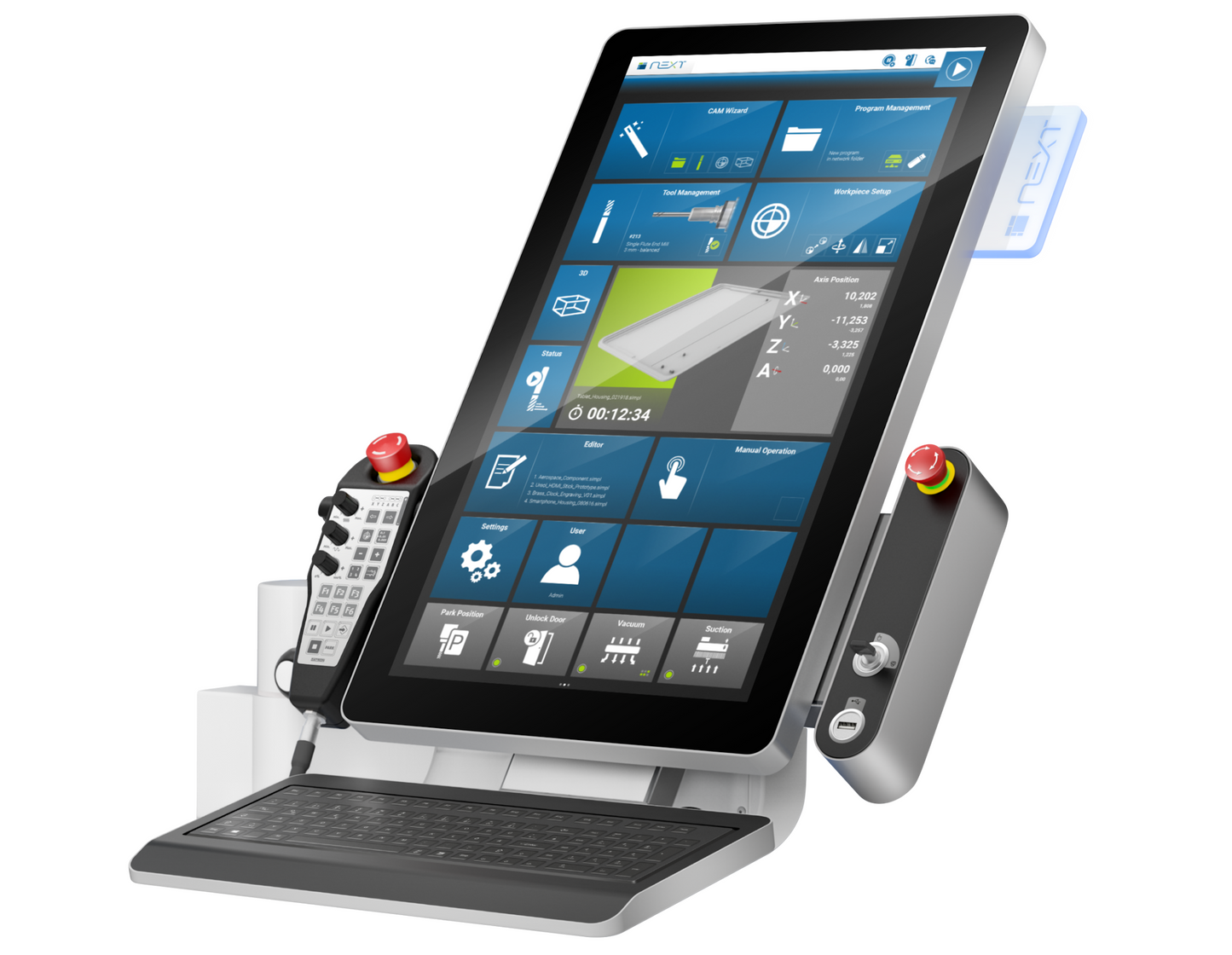

DATRON next control with full colour 24” touchscreen

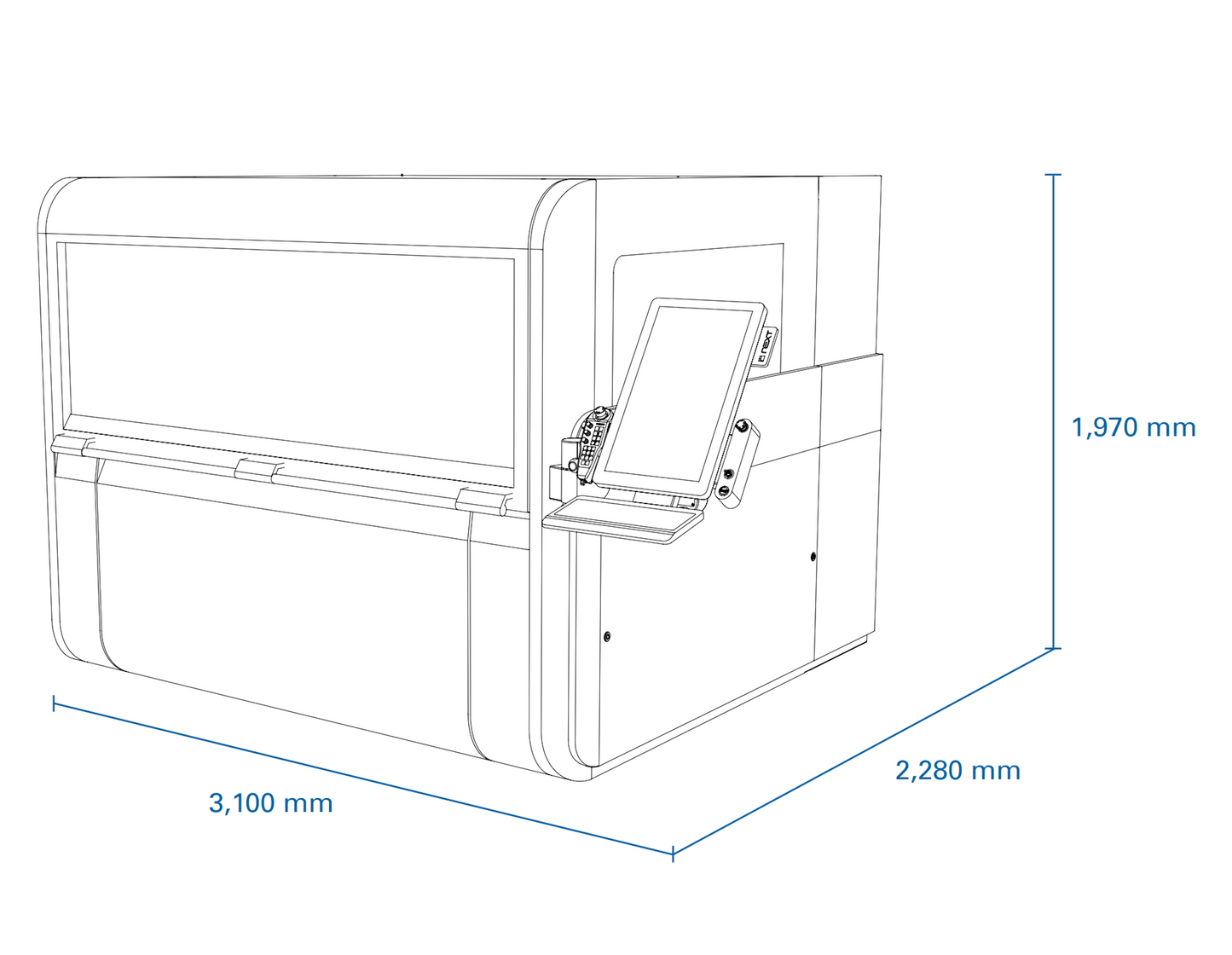

Machine Weights & Dimensions

Footprint: 3358mm x 1855mm x 2235 mm (106" x 73" x 88") (W x D x H)

Weight: ~3800kg

DATRON MLCube Highlights

  • Extreme Precision

    • Extreme precision due to high-quality linear guides, ball screws, brushless direct drives and precision crafted structural elements

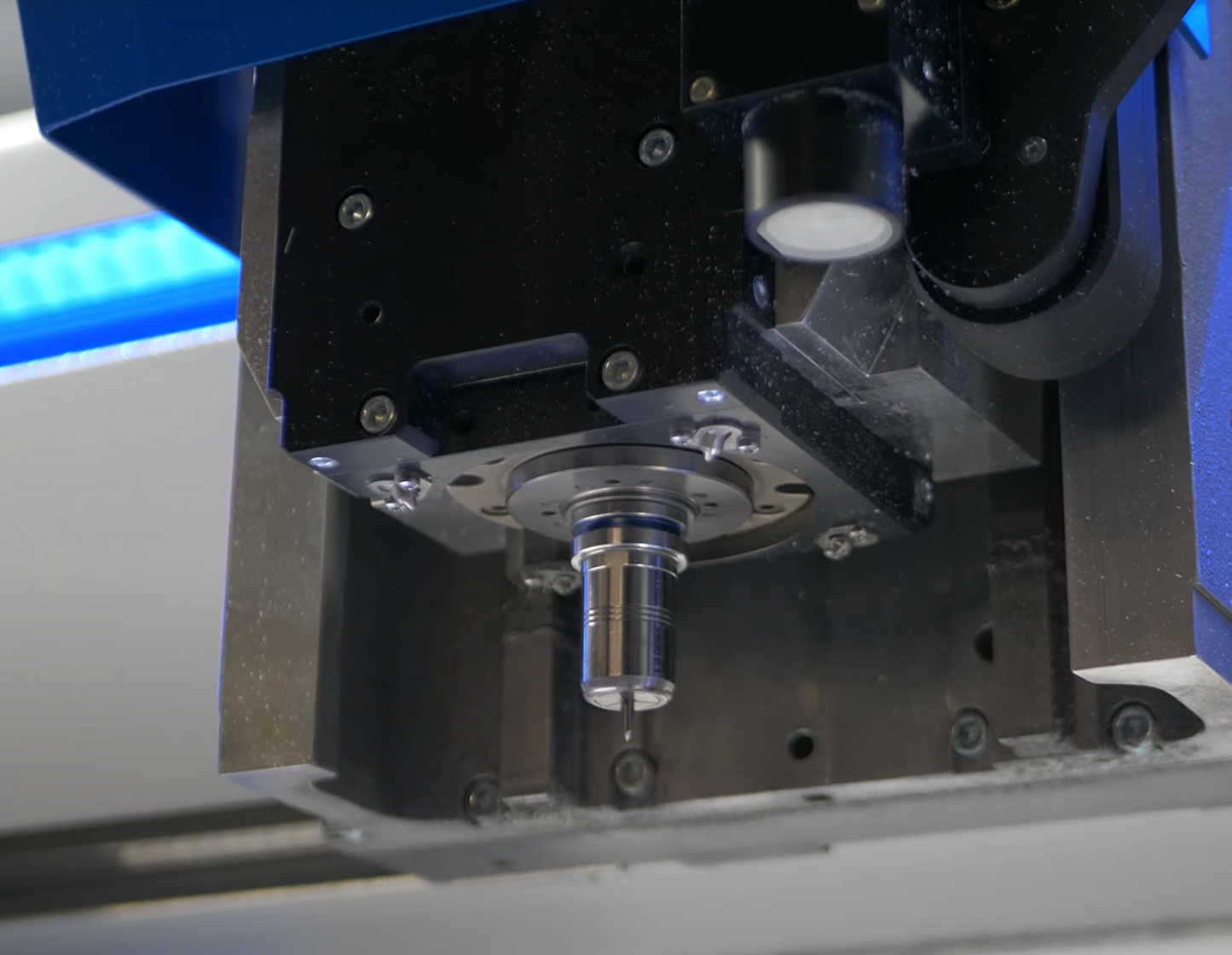

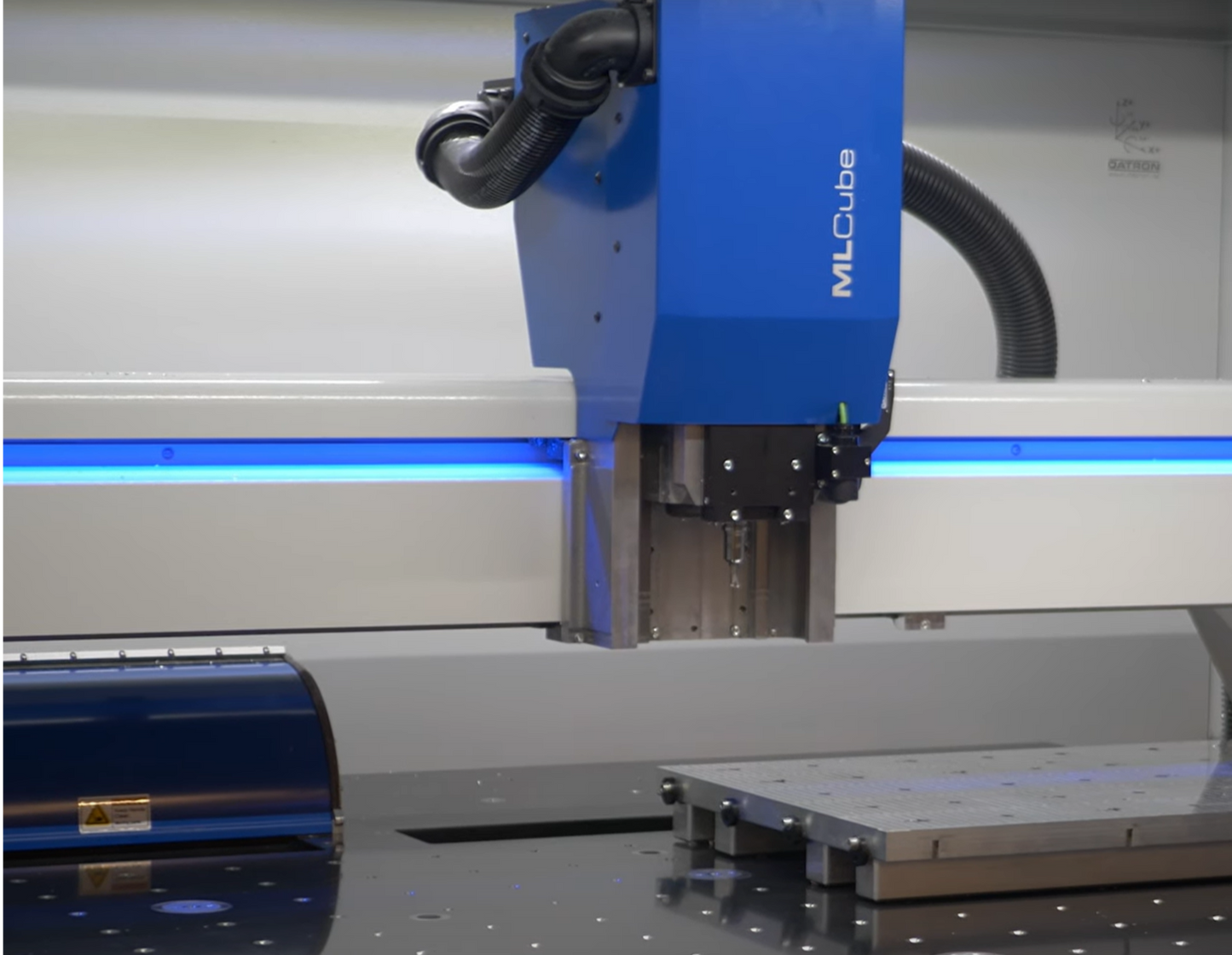

  • High Frequency Spindle

    • With speeds up to 60,000rpm and high concentricity guarantee
    • High cutting performance and perfect machining results when using small tools

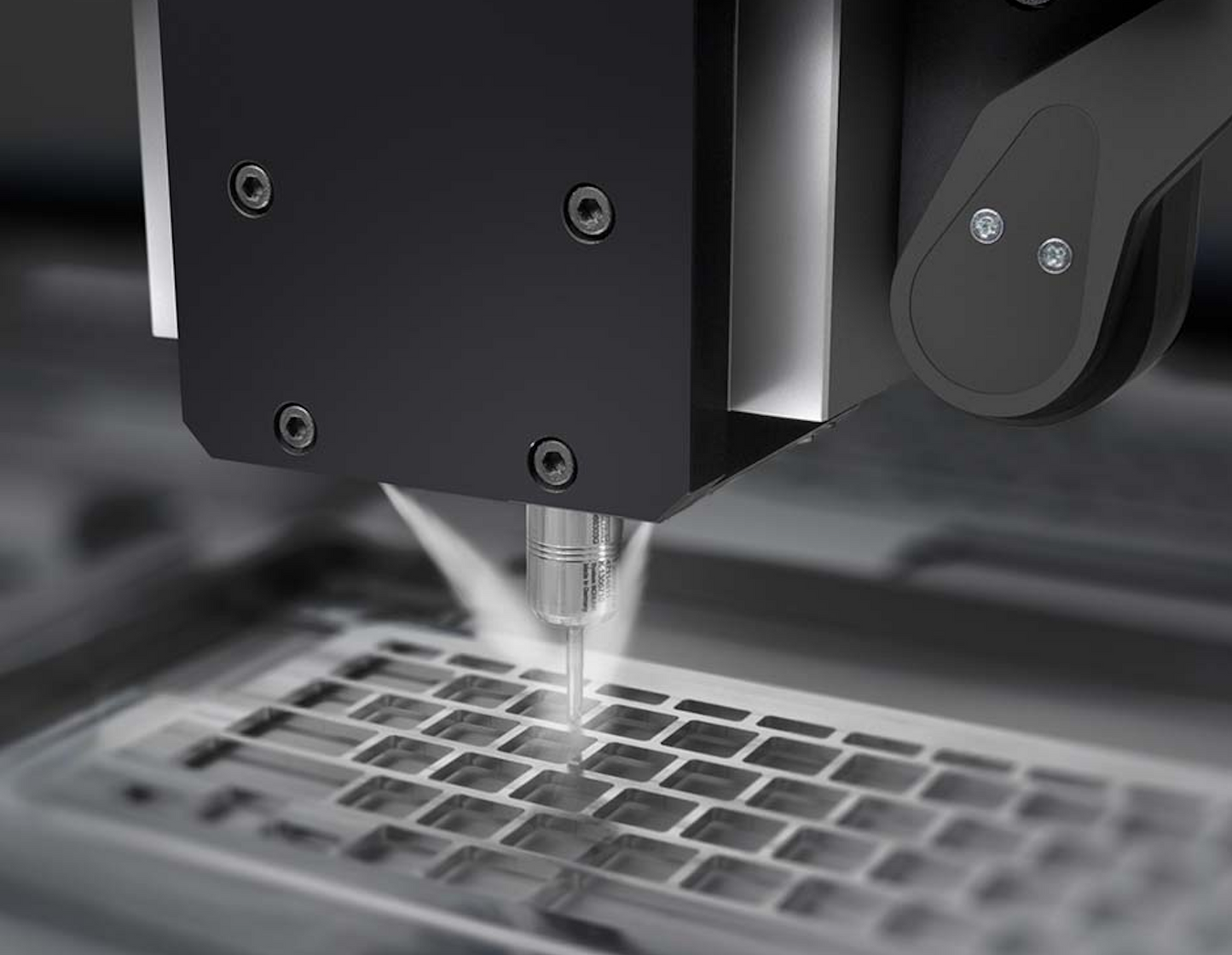

  • Cooling/Lubricating System

    • Economically optimised process with minimum quantity cooling lubrication
    • Leads to improved cooling of the tools and workpiece which extends tool life and increases machining quality and speed

  • Measuring Probe

    • The XYZ sensor guarantees short setup times, increased precision, and cost-effectiveness by automatically measuring reference edges and height profile
    • Measure and compensate for height differences of the workpiece in real time

  • Updated Chip Management

    • New chip carriage design with allocation to multiple containers (stackable) to promote work ergonomics

  • Multiple Configurations

    • Put a vacuum chuck on one side of the bed, a pneumatic clamp on the other, and a 5-axis unit in the front
    • Take on any job without changing setups

  • DATRON Next Control Software

    • State-of-the-art control software designed to enable beginners and professional to operate within days, not weeks
    • Remote software monitoring to check the status of your job from anywhere

  • Rigid Design

    • Rigid, low vibration design for excellent surface quality when machining
    • High dynamics through optimised controls with a focus on acceleration and stiffness designed mechanical design
    • Highly precise milling even with dynamic temperature drifts
1 8

DATRON MLCube Accessories

  • 4 and 5-Axis Machining

    • Extend the possibilities of multi-sided machining and round engraving
    • Specially designed module for fast and precise positioning on the machine table
    • 5-axis milling with rotary/ swivel table for precise multi-sided machining of small parts

  • Linear Scales

    • Provides direct position feedback for each axis using high-resolution measurement for extra precision activities
    • Enhances machining accuracy and repeatability by compensating for thermal or mechanical drift

  • Suction CleanCut

    • Combines chip extraction and air flow control to clear debris during slotting and contouring.
    • Improves surface quality and cost efficiency and reduces cleaning time

  • Vacuum Table

    • New vacuum clamping technology with the possibility of electrically enabling/disabling different segments for increased precision, efficiency, and quality
    • Enables fast setup and uniform holding without damaging delicate materials

  • PerfectCut

    • A proprietary technology that optimises machine dynamics and toolpath smoothing
    • Produces exceptional edge quality and finish, especially in delicate or thin materials

  • Dust Extraction System

    • Removes dust and small chips from the cutting area while machining
    • Improves visibility, cleanliness, and surface finish while protecting machine components

  • Vision System

    • Captures real-time images of the workpiece for visual alignment and setup
    • Speeds up positioning and reduces setup errors, even on complex parts

  • Clamping Systems

    • Low profile mechanical and pneumatic vices with soft jaws
    • Table cutout for vertical clamping technology, appropriate for machining high components

  • Tool Life Management

    • Automatically tracks tool wear and replaces tools when they reach their preset lifespan
    • Prevents unexpected tool failure, ensuring consistent quality and uninterrupted production

  • Surface Profiling

    • Measurement and mapping of 3D surfaces and compensation of variances
    • Ensures consistent material thickness and superior surface finish across wide panels

  • Automation Integrations

    • 24 volt I/O connections for robots, cobots, or pallet systems
    • Enables unattended, high-efficiency production through automated part handling, door control, and system integration

1 11

DATRON MLCube Areas of Application

Electronics

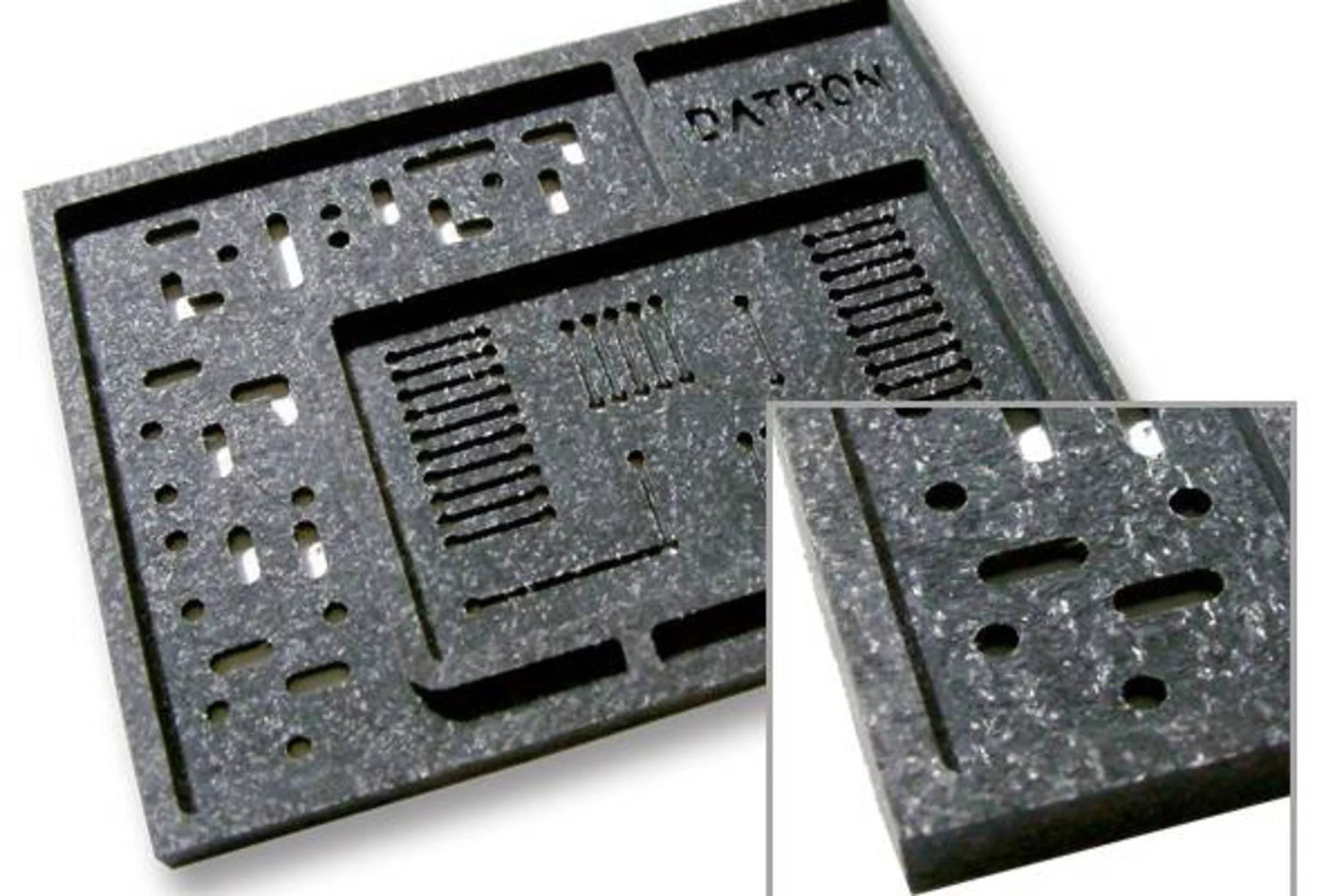

  • Front panels and housings
  • Membrane keyboards
  • Test adapter drilling
  • Drilling and milling of test devices
  • Milling of solder frames
  • PCB milling
  • Plastic sheet processing
  • Composites
  • GRP/CRP materials

Aerospace

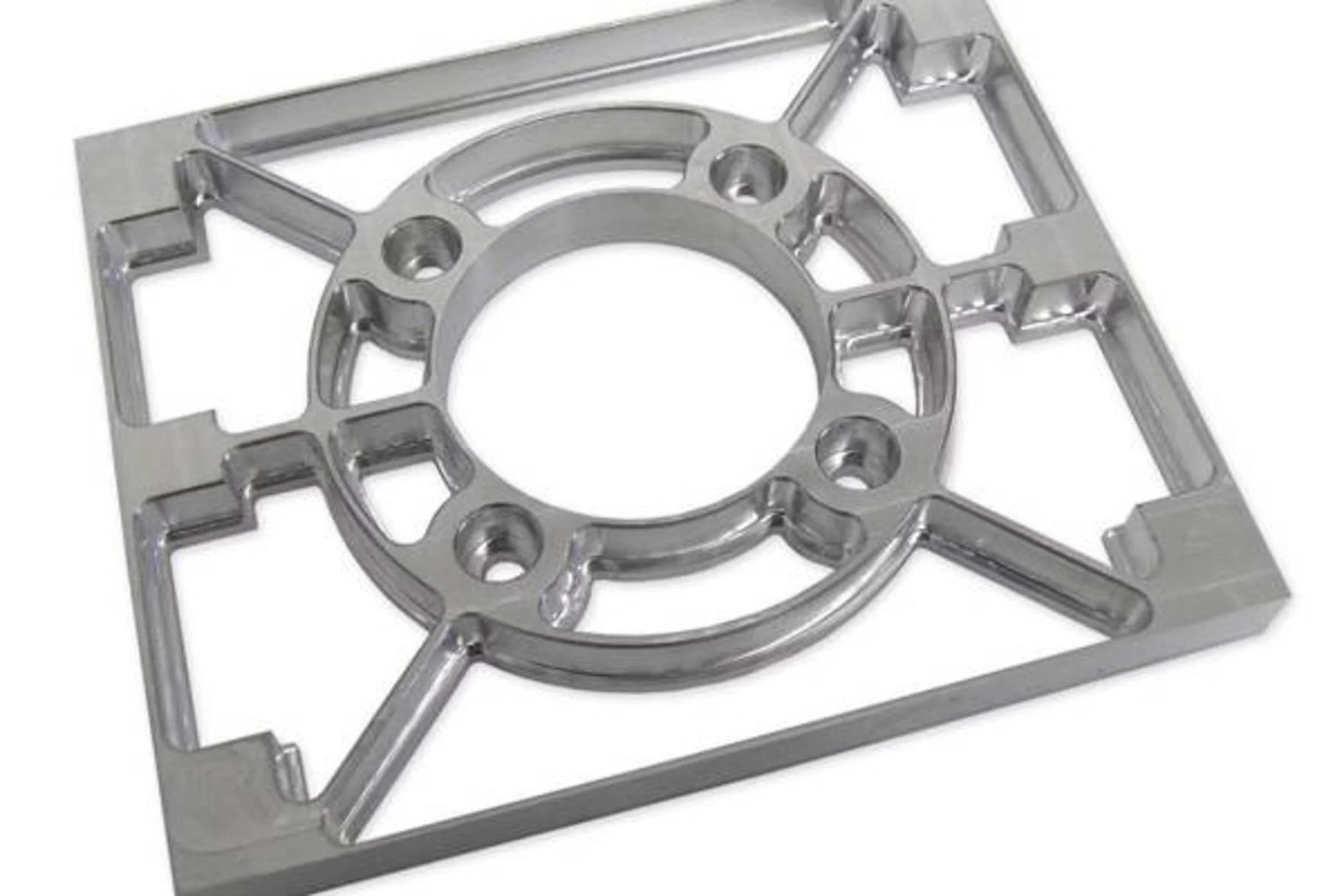

  • Machining of aluminium plates
  • Machining of aluminium profiles

Advertising & Printing

  • Processing of signs
  • Processing of profiles

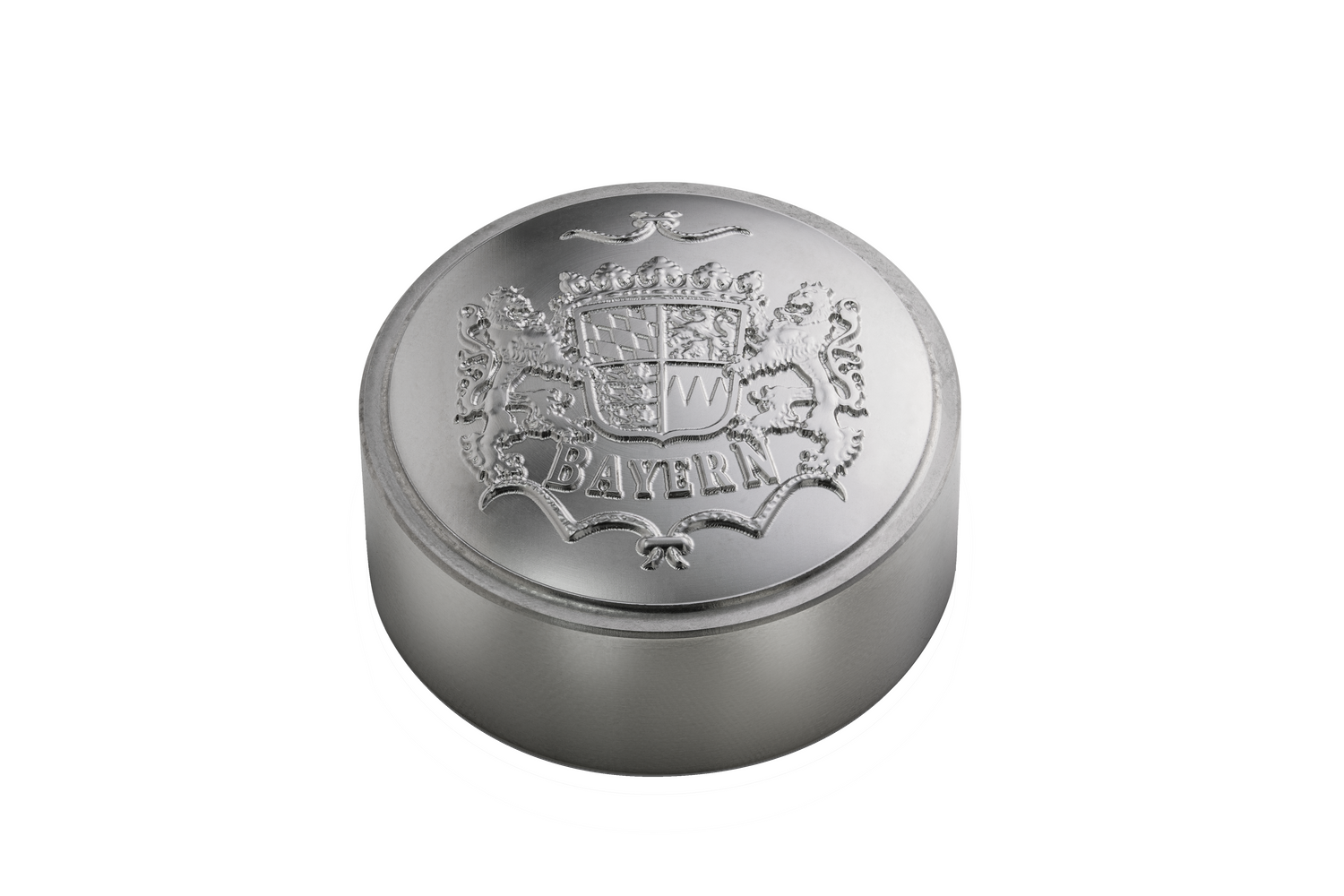

  • Hot stamping dies
  • Stamping tools

Additional Sectors

  • Medical Technology
  • Automotive Industry
